Some more interior PicsHere's some more pics, including the boot. This probably isn't the section to have included the boot, but for the time being it doesn't have another home.
|
Rear Seat...
....or at least where the rear seat should be.

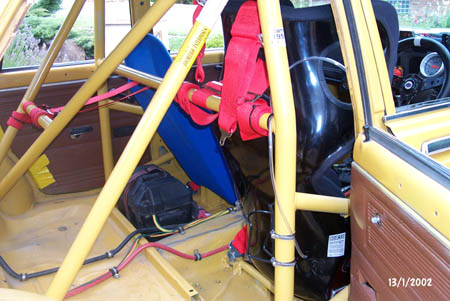

Notice the battery box mounted behind the passengers seat. This location was chosen for improved polar moment of intertia and to move it closer to the centre of gravity.
The red and black hoses are for fuel. Red is positive pressure from the pump to the injection rail and black is the return. |
Boot
No amps or sub woofers here.

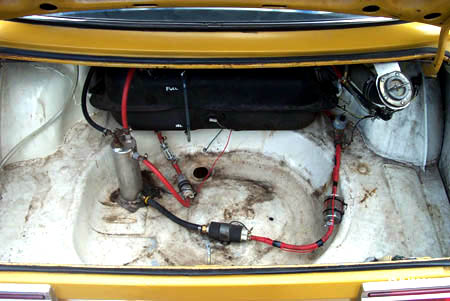

Fuel system is pretty simple. Fuel comes from the tank into a priming pump via gauze filter. From the pump it goes into the surge tank. The surge tank is arranged so that it receives all fuel so as to supply the main pump - any excess dumps back into the tank via a return. From the surge tank fuel goes to the main pump and on to the fuel rail and regulator. Any excess then comes back to the surge tank via a return.
Notice the pressure switch on the left hand side. Front Suspension :: Rear Suspension & Brakes :: Head :: Induction :: Quad TB Manifold |
