Portable Hand Sprayers
rociador portable de la mano

Origin: P.R.C.

Stainless Steel Barrel

#23c_16s

Model #	Tank capacity	Air chamber capacity	working pressure	max. pressure	Nett weight	Dimensions (cm)
#23c_16s	16 litres	0.9 litre	0.2~0.3 Mpa	1.0 Mpa	4.5 kgs	43.5 x 19 x 57

Plastic Barrel

#23c_900

High Presuure Knapsack Sprayer

Model#	Speed (rpm)	Rated Power Kw	Tank Capacity	Fuel Tank Capacity	Engine Type	Displace -ment	Pump Type	Discharge Pressure	Discharge Volume	Fuel Mixed Ratio	Dimensions
23c_900	5,500	0.7	25 L	0.75 L	Two Stroke	22.5 cc	High Pressure Piston	5-30 (kg/cm)²	1.5-7.4 L/min	25:1	45x33x62

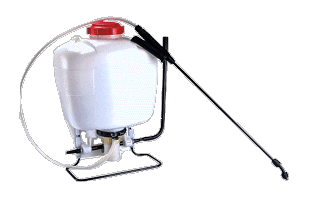

#23c-15	#23c-16	#23c-18

Model #	Tank capacity	Air chamber capacity	working pressure	max. pressure	Nett weight	Dimensions (cm)
#23c_15	15 litres	1.0 litre	0.1~0.4 Mpa	1.0 Mpa	4.0 kgs	35 x 21 x 52
#23c_16	16 litres	0.9 litre	0.2~0.3 Mpa	1.0 Mpa	3.4 kgs	43.5 x 18 x 57
#23c_18	18 litres	0.85 litre	0.1~0.5 Mpa	1.0 Mpa	3.6 kgs	40 x 22 x 57


#23c_5e	#23c_8

Model #	Fill capacity	Total Rated Fill Capacity	Diameter/height	Spray Pressure(Bar)	Nett weight kg/pc	Dimensions (cm)	Set(s)/ctn
#23c_5e	5 litres	7 litres	175/550 mm	3	1.75	72 x 36 x 57	8
#23c_8	8 litres				2.1	20 x 20 x 60	1

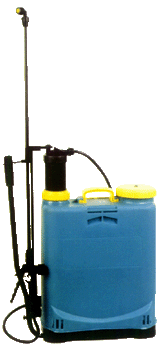

#22c_16a

#22c_16b

#22c_18a

#22c_18b

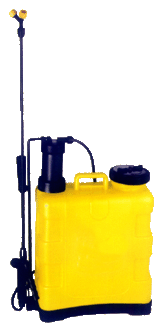

#22c_20a

Tank - plastic injection,
Plastic supporter.

Tank - blown plastic,
Metallic supporter.

Tank - blown plastic,
Plastic supporter.

Tank - plastic injection,
Plastic supporter.

Model #	Tank capacity	Working Pressure (Kg/cm²)	Nett weight	Dimensions (cm)
#22c_16a	16 litres	4.0~5.0	3.5 kgs	43x 18.5 x 60
#22c_16b	16 litres	4.0~5.0	3.5 kgs	40x 18.5 x 61
#22c_18a	18 litres	4.5	3.8 kgs	40x 18.5 x 61
#22c_18b	18 litres	4.5	3.8 kgs	40x 18.5 x 61
#22c_20a	20 litres	4.5~5.5	4.2 kgs	43x 20 x 59.5

Compressive Sprayer

#22c_4

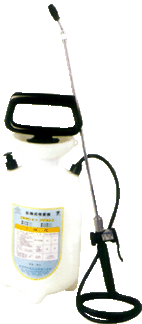

#22c_5

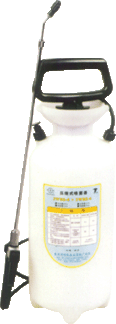

#22c_6

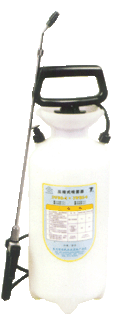

#22c_8

Model #	Tank capacity	Quantity	Dimensions (cm)	Available Color(s)
#22c_4	4 liters	6 pcs	56.5 x 38 x 43	White body - dark green handle yellow body - dark green handle
#22c_5	5 liters	6 pcs	56.5 x 38 x 44.5
#2c_6	6 liters	6 pcs	56.5 x 38 x 50
#22c_8	8 liters	6 pcs	56.5 x 38 x 55.5

#22c_2

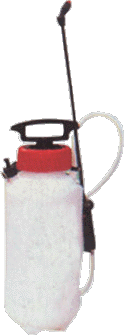

#22c_A10-10 side-view

Model #	Tank capacity	Quantity	Dimensions (cm)
#22c_2	2 litres	15 pcs/ctn	66 x 40x 33

Model #	Tank capacity	Nett weight	Dimensions (cm)
#22c_A10-10	10 litres	3.0 kgs	21 x 21 x 57


#21c_BI-3L (3 litres) 4 pcs/carton	#21c_BI-5L (5 litres) 4 pcs/carton	#21c_BI-8L (8 litres) 4 pcs/carton
