Akai AT-K02 tube mod

Here are just some pic's from
the mod I did on a Akai AT-K02 .
(schematic soon I hope).
I hope you know the high voltage can be lethal !!
If you try this mod also it's at your own risk ....

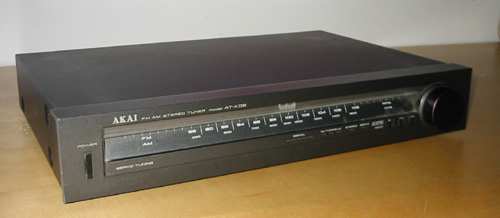

The first pic comes from the site I scored the AT-K02 .

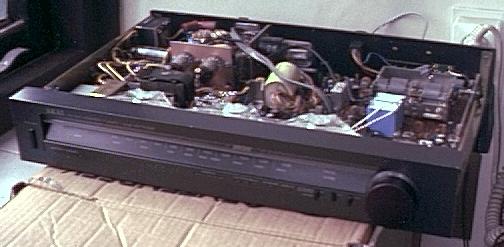

Here starts the mod

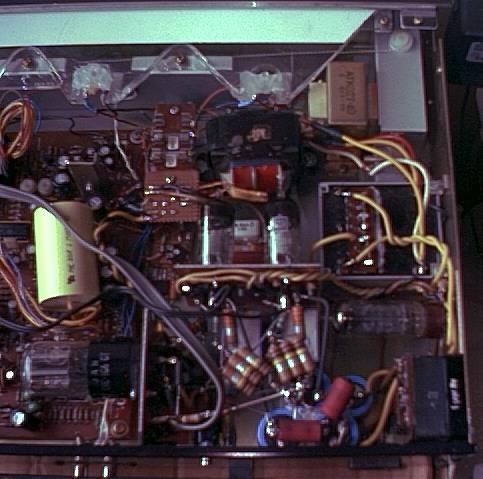

Used tubes : 2 x EF184 , 1 x 1G6GT and 1 x EZ80
