Akai AT2600 mod

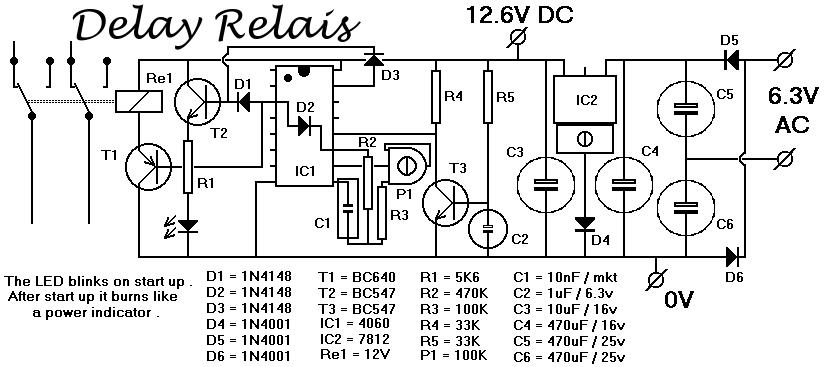

Here are just some pic's and schematics from
the mod I did on my Akai AT2600 .
I hope you know the high voltage is lethal !!
If you try this mod also it's at your own risk ....

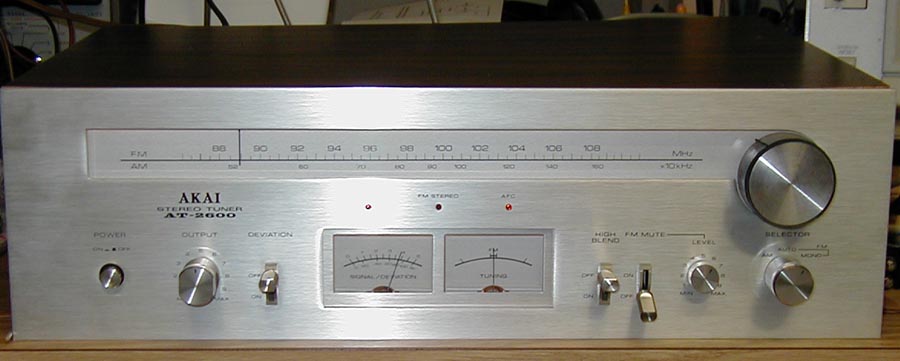

The first pic comes from an E-mail , I have a black one .










Used tubes : 2 x E180F and 1 x 3A5



Watch out for R5 !! It should be 68 - 100K !!
33K blew T3 !!
