Leprechaun

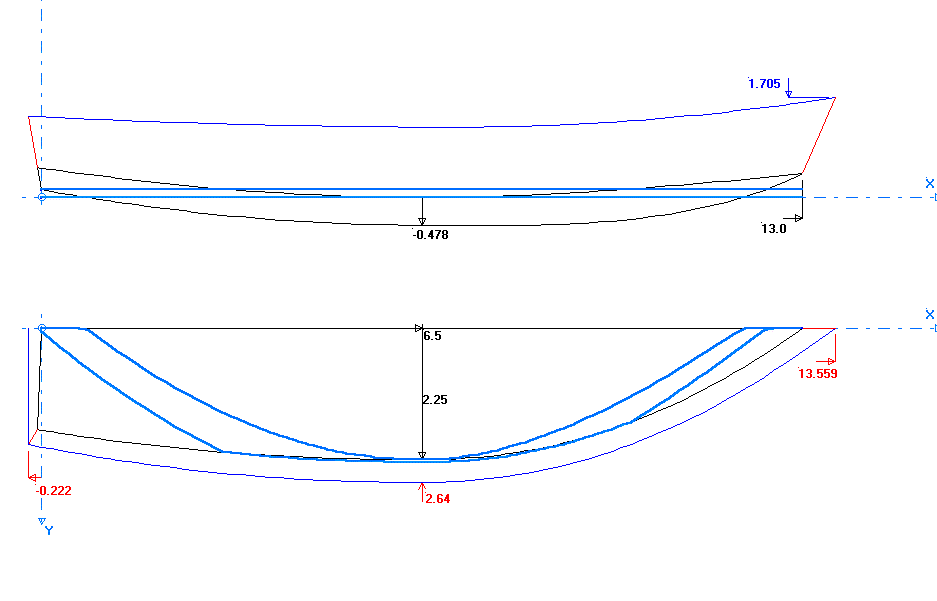

Leprechaun is a 14 foot day sailer or row boat hull. It could also mount a motor, but will not plane. A smallish cabin could be fitted, with an extention tent for overnight cruising.

Uses 3/8" ply for the bottom and 1/4" or 3/8" for the sides. Waterlines are 420 lbs (Chine just kissing the water) and 750 lbs (Transom doing the smooching). Boat weight is about 140 lbs or so (a guess). Beam is 63.3 inches. Length is just under 14 feet. Draft is about 6 inches. Trailer required. As usual, seating and rigging are up to you.

Offsets for the hull panels will be available here
