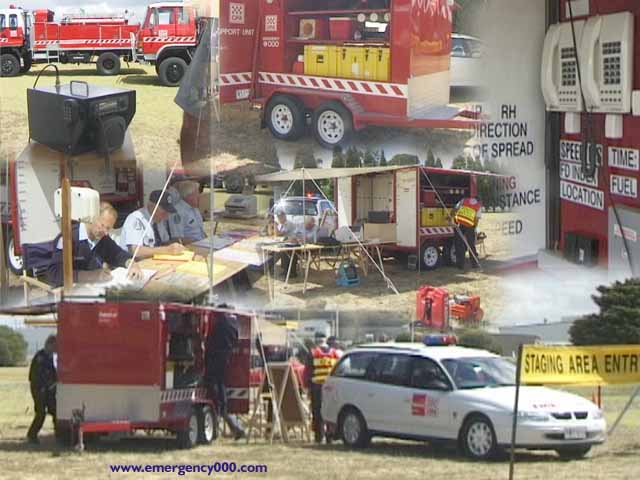

This is a picture montage of the CFA's new Incident Support Unit that was
unveiled in Geelong (Region 7).

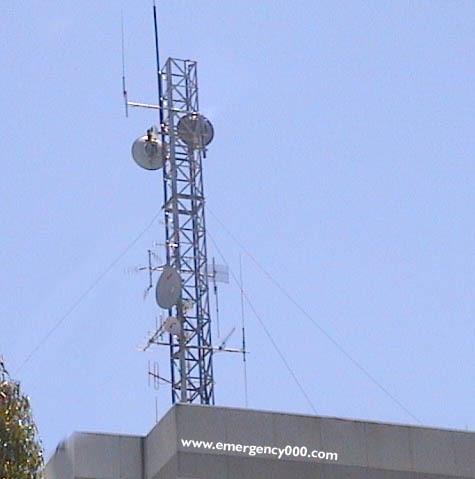

Here is the part of the communications tower at CFA Head Quarters at Tally Ho in Burwood.
| OLD Channel Name | NEW Channel Name | Channel Number |
| Region 7 BEST | REG - 7VF 21 | 21 |
| Region 7 Main | REG - 7A 22 | 22 |
| Region 7 Goto 1 | REG - 7B 23 | 23 |
| Region 7 Goto 2 | REG - 7C 24 | 24 |
| Region 8 BEST | REG - 8VF 27 | 27 |
| Region 8 Main | REG - 8A V 28 | 28 |
| Region 8 Goto 1 | REG - 8B 29 | 29 |
| Region 8 Goto 2 | REG - 8C 30 | 30 |
| Region 8 Goto 3 | REG - 8D 31 | 31 |
| Region 8 Goto 4 | REG - 8E 32 | 32 |
| Region 13 BEST | REG - 13VF 54 | 54 |
| Region 13 Main | REG - 13A 55 | 55 |
| Region 13 Goto 1 | REG - 13B 56 | 56 |
| Region 13 Goto 2 | REG - 13C 57 | 57 |
| Region 13 Goto 3 | REG - 13D 58 | 58 |
| Region 14 BEST | REG - 14VF 61 | 61 |
| Region 14 Main | REG - A 62 | 62 |
| Region 14 Goto 1 | REG - B 63 | 63 |
| Region 14 Goto 2 | REG - C 64 | 64 |
| Channel Number | Channel Name | Frequency |
| 21 | Reg - 7 VF 21 | 163.6000 |
| 163.2250 | ||
| 163.5375 | ||
| 162.4000 | ||
| 162.5750 | ||
| 162.8375 | ||
| 22 | Reg - 7A 22 | 160.9875 |
| 23 | Reg - 7B 23 | 161.1250 |
| 24 | Reg - 7C 24 | 161.0125 |
| 27 | Reg - 8 VF | 162.6750 |
| 162.7250 | ||
| 162.4125 | ||
| 28 | Reg -8 Main | 163.7875 |
| 163.5500 | ||
| 163.3750 | ||
| 29 | Reg - 8A | 161.1875 |
| 30 | Reg - 8B | 161.0750 |
| 31 | Reg - 8C | 161.0000 |
| 32 | Reg - 8D | 161.1375 |
| 54 | Reg - 13 VF 54 | 162.6875 |
| 163.5250 | ||
| 162.8875 | ||
| 162.2375 | ||
| 162.1625 | ||
| 55 | Reg - 13A | 161.1125 |
| 56 | Reg - 13B | 161.1750 |
| 57 | Reg - 13C | 161.2000 |
| 58 | Reg - 13D | 161.1000 |
| 61 | Reg -14 VF | 162.1875 |
| 163.2000 | ||
| 162.7750 | ||
| 163.5625 | ||
| 62 | Reg - 14A | 161.0625 |
| 63 | Reg - 14B | 161.1500 |
| 64 | Reg - 14C | 161.0500 |
| 107 | Air Craft | 161.2125 |
| Air Attack Supervisor (During fire season only) | 132.55,135.55,126.35
128.9 Mhz AM |
The channels listed above are
for the BEST CAD area. BEST stands for Bureau of Emergency
Services Telecommunications. the metropolitan channels are known as VICFIRE
channels or VF for short. These channels are used in the outer Melbourne
and Geelong suburbs that surround Port Phillip Bay. They all run on a
voting system a bit like the Police radio system.
All the BEST channels are run out of the CFA communications offices in East
Burwood.
In addition to the BEST channels, each region has either 3 or 4 simplex channels
to use.
These channels are listed below. They are used for fire ground traffic, so
when a unit arrives on
scene at a fire, generally they will all go to one of these channels. One
other thing about these
channels is that the BEST channel operators DO NOT talk on them, as they are
simplex only.
So if all the units are on the Simplex channels, a control unit will have a
radio still tuned in on a BEST channel so they can hear any messages from
VICFIRE.
| Channel No. | New Channel Name | Frequency |
| 1 | Reg 2A | 161.1000 |
| 2 | Reg 2B | 161.1875 |
| 3 | Reg 2C | 161.0875 |
| 6 | Reg 4A | 161.1125 |
| 7 | Reg 4B | 160.9875 |
| 8 | Reg 4C | 161.0875 |
| 11 | Reg 5A | 161.0500 |
| 12 | Reg 5B | 161.0125 |
| 13 | Reg 5C | 161.0375 |
| 16 | Reg 6A | 161.1875 |
| 17 | Reg 6B | 161.0875 |
| 18 | Reg 6C | 161.0000 |
| 34 | Reg 9A | 161.1625 |
| 35 | Reg 9B | 161.0625 |
| 36 | Reg 9C | 161.0250 |
| 39 | Reg 10A | 161.0000 |
| 40 | Reg 10B | 160.9875 |
| 41 | Reg 10C | 161.0375 |
| 44 | Reg 11A | 161.0750 |
| 45 | Reg 11B | 161.0250 |
| 46 | Reg 11C | 161.0500 |
| 49 | Reg 12A | 161.0125 |
| 50 | Reg 12B | 161.2250 |
| 51 | Reg 12C | 161.1375 |
| 67 | Reg 15A | 161.0250 |
| 68 | Reg 15B | 161.1625 |
| 69 | Reg 15C | 161.2000 |
| 72 | Reg 16A | 161.0750 |
| 73 | Reg 16B | 161.1375 |
| 74 | Reg 16C | 161.1750 |
| 77 | Reg 17A | 161.2250 |
| 78 | Reg 17B | 161.1500 |
| 79 | Reg 17C | 161.1000 |
| 82 | Reg 18A | 161.0125 |
| 83 | Reg 18B | 161.0375 |
| 84 | Reg 18C | 160.9875 |
| 87 | Reg 20A | 161.1250 |
| 88 | Reg 20B | 161.0500 |
| 89 | Reg 20C | 161.0250 |
| 92 | Reg 22A | 161.1500 |
| 93 | Reg 22B | 161.0375 |
| 94 | Reg 22C | 160.9875 |
| 97 | Reg 23A | 161.0500 |
| 98 | Reg 23B | 161.0750 |
| 99 | Reg 23C | 161.0625 |
| 102 | Reg 24A | 161.1250 |
| 103 | Reg 24B | 161.0125 |
| 104 | Reg 24C | 161.0875 |
Click on the maps above for a larger image.
