DC to AC Power Inverter , a soultion to achieve handy Mobile Power Convert from automobile's or batteries' 12 Volts or 24 Volts DC to household 110 Volts ~ 240 volts AC power.  A solution to all occasions when conventional power source are not available. Characterized by its light weight, non air pollution,low audible noise, high efficiency and steady voltage. Power specified is that result from 24 hours continous bulbs testing. Steady AC output;  voltage varies within 4V ,i.e. 3%, under maximum output. Perfect protection installations : Auto shut-down at battery's low voltage; Short circuit protection at Input and Output; Overload protection; Soft start-up button for instantaneous start-up. Applications:         etc.

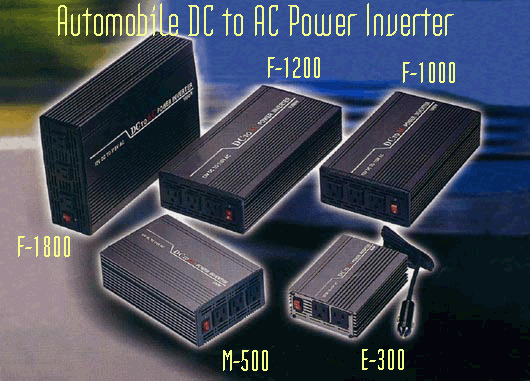

Model No.	E-50	E-150	E-300	M-500	F-1000	F-1200	H-1800
VOLTAGE IN	12v DC or 24v DC
VOLTAGE OUT	100V, 115V, 220V or 240V AC
CONTINOUS POWER	50W	150W	300W	500W	1000W	1200W	1800W
PEAK POWER	100W	300W	600W	1200W	2000W	2500W	3600W
OUTPUT FREQUENCY	50 Hz or 60 Hz
OUTPUT WAVEFORM	modified sine wave
NO. OF AC OUTLET SOCKET(S)	1	1	2	3	3	3	3
NON LOAD CURRENT DRAW	0.1A	0.2A	0.4A	0.6A	0.8A	1.0A	1.7A
EFFICIENCY	90 %
FUSE	10 A	20 A	30 A	30 A *2	30 A *3	30 A *4	30 A *6
WEIGHT	0.20 Kg	0.46 Kg	0.80 Kg	1.10 Kgs	1.95 Kgs	2.40 Kgs	3.20 Kgs
DIMENSION (L*W*H) in mm	115*60*35	155*75*40	150*105*45	200*130*60	265*150*60	315*150*60	315*190*70

Country of Origin:     Taiwan.
