1. Remove baffle by removing four screws.

2. Locate holes in tender from template fur
nished and drill holes.

3. Install special tubular clip (see figure 179).
4.   Place thin washers on studs marked "A" on
assembly.

5. Place shield in position on fender and in
stall flat washers, lock washers and nuts,
6, Replace baffle and screws.

Approximate Flat Rate Time .4 of an hour.

Figure 181

Figure 179

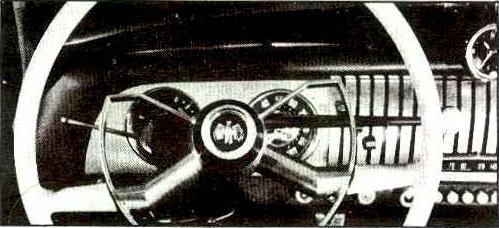

986514 SELF-CANCELING TURN SIGNAL   1.

Procedure for Installation of Turn Signal
on All Model Passenger Cars.

Hook loom cover into wire hole on bottom
of switch and mount between gear shift con
trol and steering wheel hub on left side of
steering post. Mount turn signal to left of

Figure 180
