986403 CIGARETTE LIGHTER AND LIGHT

Procedure for Installation of
Cigarette Lighter and Light
on All Model Trucks.

1.   Remove and discard dummy button or pres
ent lighter.

Remove lamp socket from clamping shell
and clamping shell from lighter.

3. Insert lighter in hole and reassemble clamp
shell and lamp socket.

4.   Rotate clamp shell to position such that unit
causes no interference.

5.   Attach lamp socket wire to tail lamp termi
nal on the light switch, (see figure 135).
6.   Attach cigarette lighter wire to terminal on
back of light switch, (see figure 135).

Approximate Flat Rate Time .2 of an hour.

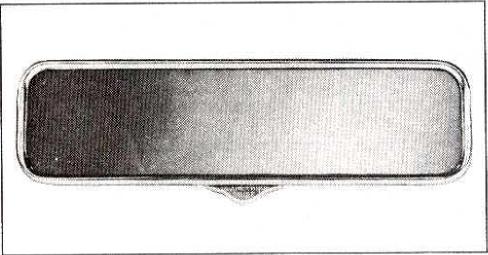

986530 REAR VIEW MIRROR - PRISMATIC

Procedure for Installation of

Rear View Mirror (Inside)
on All Model Passenger Cars.

Figure 135

Figure 137

1. Recommended dimension from bottom of
moulding to upper edge of mirror base is
7/8 of an inch as shown in figure 138.

Figure 138

2.   Loosen screw "H," set base at angle of door
edge and tighten securely as shown in figure
139.

1. Remove equipment rear view mirror from
windshield divider by loosening jam nut and
unscrewing mirror from windshield divider.

2. Install PRISMATIC rear view mirror on
windshield divider and tighten jam nut.

3. Rotate mirror on ball so that name tab on
the mirror is at the bottom.

Approximate Flat Rate Time .1 of an hour.

986305 OUTSIDE REAR VIEW MIRROR

Procedure for Installation of

Outside Rear View Mirror
on All Model Passenger Cars.
