1.   Disconnect wires and remove neutral safety
switch from lower end of steering column
as shown in figure 121.

2. Place gearshift in neutral position and mount
combination back-up and neutral safety

switch (furnished) with same mounting parts
removed from equipment switch. DO NOT
REMOVE COTTER PIN FROM POWER
GLIDE SWITCH.

3. Reconnect neutral safety wires to Power
Glide switch. Remove cotter pinfrom switch.

Same procedure for Fleetline except the
following:

Measure 22-3/4 inches from license lamp
as shown in figure 122.

Assemble lamps to body and connect wires

to four-way connectors as shown in figure
122.

Approximate Flat Rate Time .9 of an hour.

985489 GLOVE COMPARTMENT LIGHT

WIRING PROCEDURE
CONVENTIONA1,POWER GLIDE

1. Run wires through existing clip on dash as
shown in figure 121.

2. Run fuse wire through grommet in dash and
hook to Junction Block as shown in figure
121. For hook-up to Accessory Junction
BlOck see figure 121.

3. Run long wires along inside of flange of
frame side member to four-way connector
at rear of vehicle. Clip to inside flange of
frame in eight places with clips furnished.

MOUNTING OF BACK-UP LIGHTS TO BODY

Procedure for Installing

Glove Compartment Light
on All Model Passenger Cars.

1.   Locate drilling position on Styleline by meas
uring 23-3/4 incises from center of license
bracket to each side of body from the stone
guard on rear bumper measure up 3-5/8
inches and where lines cross center punch.
From this point measure up toward trunk
opening 1-11/32 inches and drill 1/4 inch
hole as shown in figure 122. At first center
punch mark, drill 1-13/16 inch hole for
back-up lamp, as shown in figure 122, repeat
on opposite side.

Figure 126

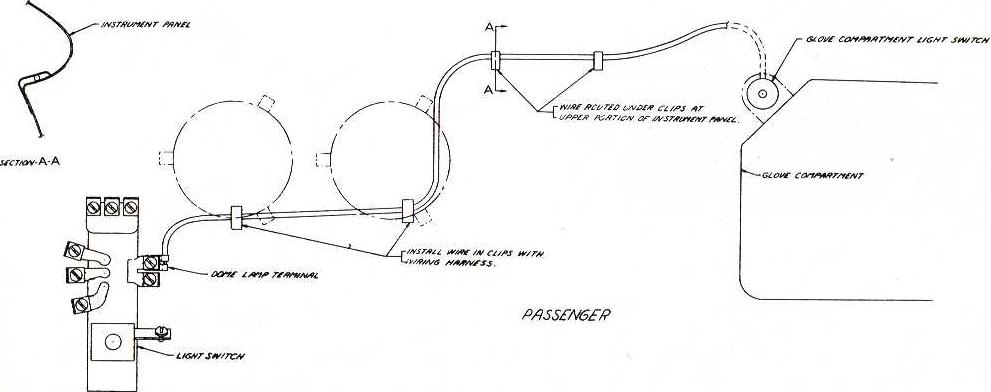

1.    Install switch in hole provided in upper left
hand corner of glove compartmentwith screw
provided.

2. Install wire to clips provided on instrument
panel. (See figure 125.)

3.   Connect wire to dome lamp terminal on light
switch. (See figure 125.)

Approximate Flat Rate Time .2 of an hour.

Figure 125
