fender
skirt using the screws which held the
rear of the duct and substitute the two large
flat washers furnished. See view at "A."
Do not tighten. Line up rear end of heater
case with air valve on dash. Tighten adjust
able bracket screw, then hex
nut, then screws
in view at "B" and finally screw in lower
bracket in the order mentioned, (see figure
7fi).
2.
Remove right-hand ventilator valve control
cable, also remove the right-hand ventilator
deflector and attaching nuts on passenger
side of dash. These parts are not required.
(See figure 78.)
3. Remove Glove Compartment.
4.

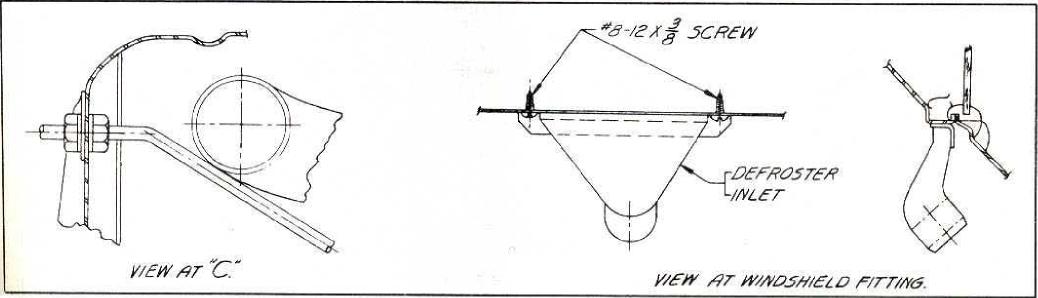

Defroster fittings; attach defroster fittings
and hose as illustrated. The left-hand hose
should be placed above the brace rod as
shown in view "C." Attach "Y" fitting to
hose, (see figure 80).
Figure 76
Figure 77
