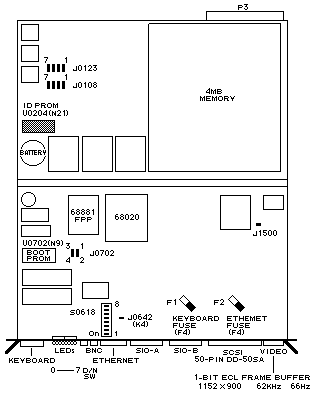

SUN3/50 Architecture

JUMPERPINSSETTONGDESCRIPTION
J01081-2INDiag test 4MB main memory
3-4OUTETH SIA CAL
5-6OUTSCSI on
7-8INDCP on
J01231-2IN68020 CLK 15MHz
3-4OUT68020 CLK 12.5MHz
5-6OUT68881 CLK 12.5MHz
7-8IN68881 CLK 15MHz
J06421-2INLevel1 Ethernrt tarnsceiver
OUTLevel2 Ethernrt tarnsceiver
J07021-2OUT27256 BOOT PROM
3-4IN27512 BOOT PROM
J15001-2IN100MHz video CLK

DIP SWSWSETTONGDESCRIPTION
S06181-8OFFEthernet
S06181-8ONThin Ethernet
