Floyd Rose Hex Screws




When assembling a Floyd Rose tremolo or simply replacing some parts, it's good to understand a little bit about the metric screws it requires. Floyd Rose sells its own replacement screws in black oxide steel and stainless steel, but they're not cheap and they're not always in stock. There are plenty of aftermarket screws available and one can even go after multiple-color, anodized titanium screws. The table below describes the metric screw sizes and characteristics one would need to be able to source these from an online screws/bolts dealer. Even the hex nuts for the Floyd Rose Non Fine Tuner (NFT)...

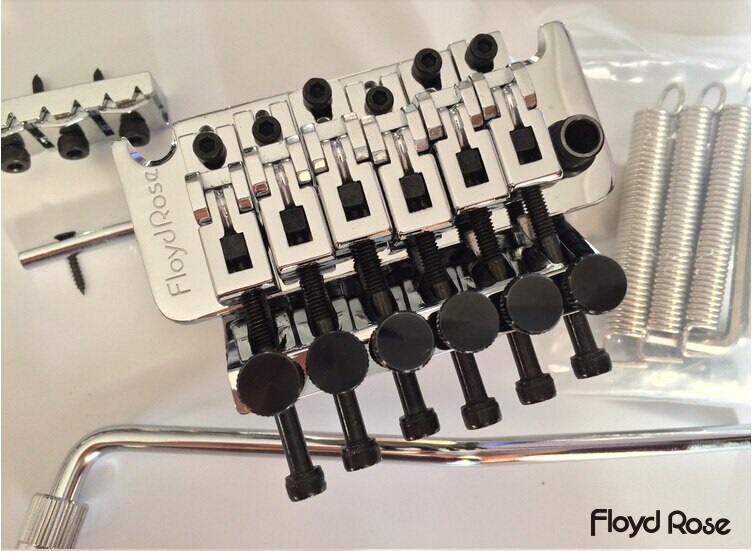

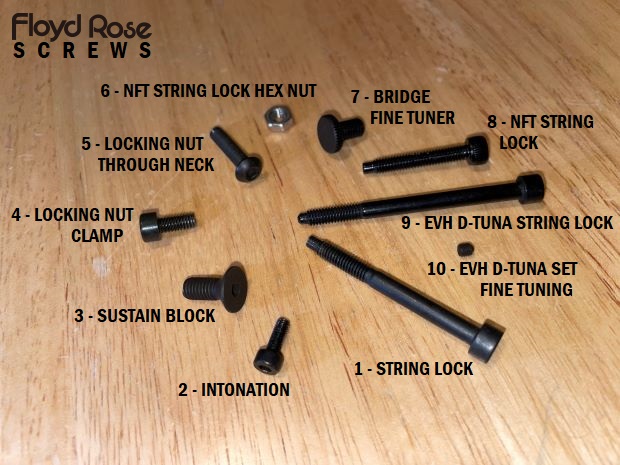

Floyd Rose hex screw chart

#
FLOYD SCREW NAME
METRIC SIZE
THREAD LENGTH
THREAD PITCH
HEAD TYPE
HEAD DIAMETER
HEX DRIVER
NOTE
1

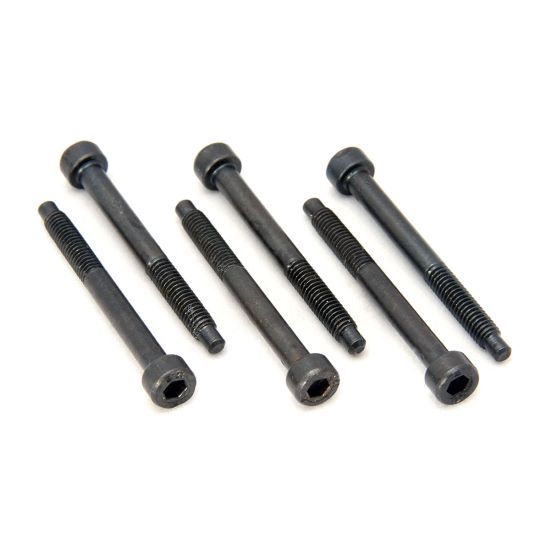

STRING LOCK
M4
36-40mm*
0.7
socket cap
7mm
3mm
*includes 18-22mm shoulder; rounded insert end
2
INTONATION
M3
8mm
0.5
socket cap
5.5mm
2.5mm
NFT use 6mm thread length
3

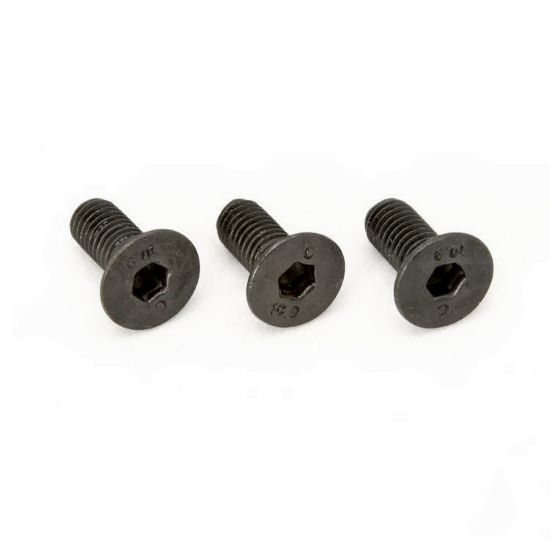

SUSTAIN BLOCK
M5
12mm
0.8
flat head
(countersink)
10mm
3mm
90° countersink
4
LOCKING NUT CLAMP
M4
8mm
0.7
socket cap
7mm
3mm
-
5
LOCKING NUT THROUGH NECK
M4
16-18mm
0.7
button
7mm
2.5mm
-
6

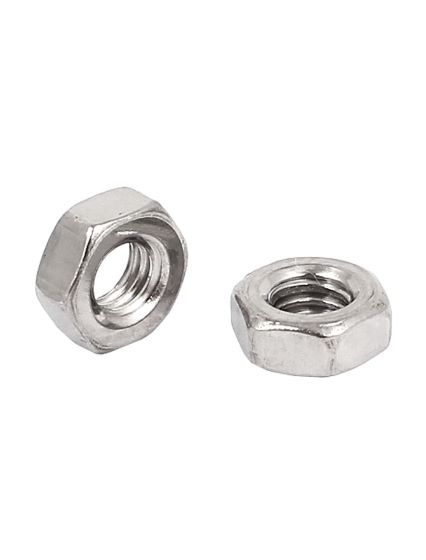

NFT STRING LOCK HEX NUT
M4 (nut)
N/A
0.7
N/A
N/A
N/A
7mm flat width, 3mm height; for use with NFT 25mm string lock screw; typically stainless steel or titanium
7

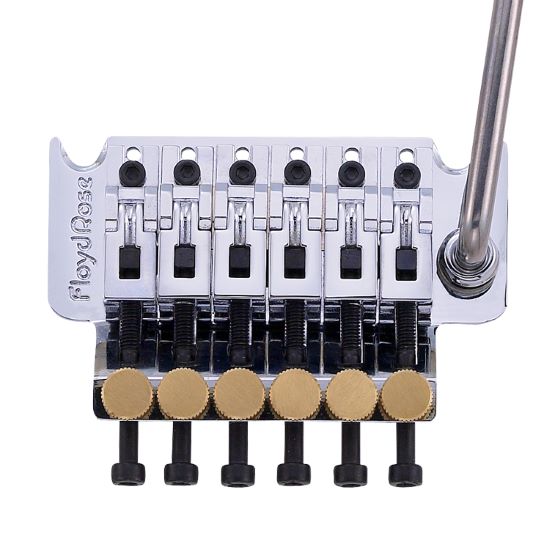

BRIDGE FINE TUNER
M5
8-10mm
0.8
thumb grip
10mm
N/A
typically black-coated brass or raw brass
8

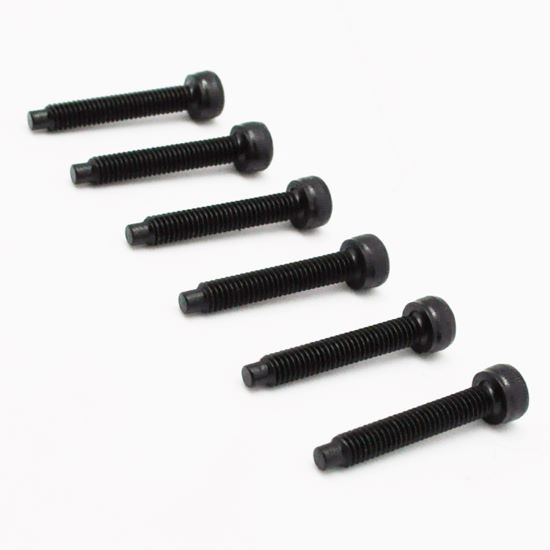

NFT STRING LOCK
M4
25mm
0.7
socket cap
7mm
3mm
no shoulder; rounded insert end
9
EVH D-TUNA STRING LOCK
M4
45mm*
(short)
0.7
socket cap
7mm
3mm
*includes 34mm shoulder; rounded insert end; long screw is 53mm length/38mm shoulder
10
EVH D-TUNA SET FINE TUNING
M3
3mm
0.5
grub
N/A
1.5mm
cup point end

- All metric screws listed above can be found in black oxide steel, stainless steel, and titanium - from Floyd Rose and aftermarket sources.
- All metric screws listed above are coarse thread.
