REPLICA GRAFLEX SABER


Like many other Star Wars fans I am on the eternal quest for a Graflex 3-Cell Flash Handle. In the meantime I decided to make my own. (Any real Jedi constructs his own anyway.)

Replica GRAFLEX Saber

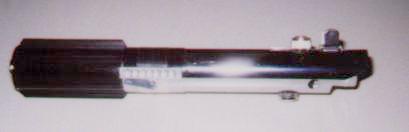

This lightsaber is an attempt to replicate the exact Saber that Luke used in ANH & ESB. It is all metal, constructed from chromed plumbing tube and many other parts, moreover it is FULLY FUNCTIONAL - (except for the blade of course, damn reality!).

Features

  • Full sound - blade opening, closing, humming, clashing, etc.
  • Beam Emitter - prefocused flashlight bulb. (corresponds to the blade sounds).
  • Correct Grips
  • Belt Clip
  • Runs on 2 "AAA" batteries

  Miscellaneous Photos

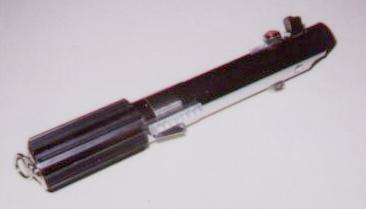

Grip End

Grip end with replica MG Wiper Blades & correct Belt Clip, houses speaker. Embossed Chrome Tape on clamp assembly. Visible also is the recharging port on the right hand side. Note; Correct Buble display on clamp assembly.

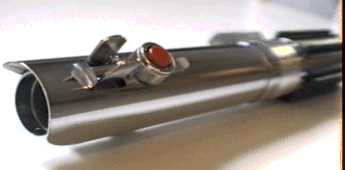

Emitter Housing End

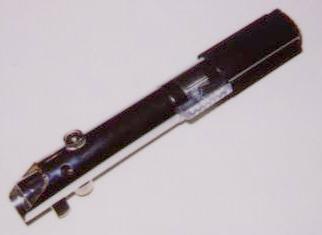

Underside, note faux button underneath as well as recharging socket and embossed chrome tape.

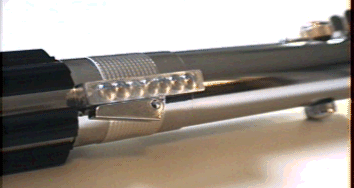

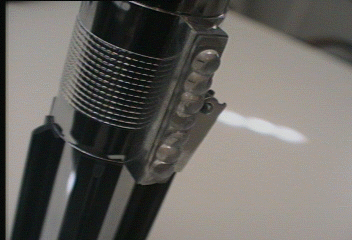

  Close up photos of detail pieces




  Production Photos

  Unfinished Aerial

Minus Grips as well as Embossed Chrome Tape

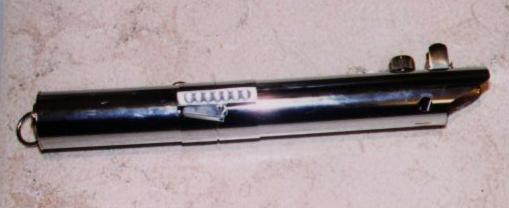

  Unfinished Profile

Minus Grips, upper button visible as well clamp.
  This Lightsaber was constructed on a budget. The parts can be purchased at Radio Shack, Home Depot or Lowes, and any Toy store. Anyone with a few tools, some patience and a heap of dilligence can do the same. (The average cost of this project is, Functional: $72.62 Non-Functional: $25.00.) I DO NOT SELL ANY!


$Parts list $
