Dec 25 , 2011

Less than a year later I got another message from Jon that the scratchy pot was back...those electrolytic caps really do need to be polarized to keep leakage currents at bay. The long term solution is the use of low dielectric constant film caps...the downside are the large sizes. In the olden days, the high input impedances of tube amps meants that these film units were used throughout the amplifier...no wonder the units sounded so good! With the advent of transistors and wide bandwidth design (i.e. lower 3dB frequency) to please the marketing people (specmanship), higher value caps were used and this invariably meant electrolytic caps.

C23
(click to enlarge)

From: Ray C.
Subject: Re: REPLACING CAPS IN SLA-1
To: jon
Date: Sunday, December 25, 2011, 4:26 PM

Hi Jon,
Good to hear from you and I wish you well during these times.
I suspected that the problem would come back. The cap(s) replaced
last time was C23 that is in line with the PCB writing
"UNIKA L.T.D" near the center of the board for channel 2. The
other cap is also in line with the markings but nearer
the back and called C24.

I would just replace the existing 10uF with a 5uF as most people
will not notice the missing lower octave...if you do...just
add another 5uF in parallel  (capacitance adds when done in parallel).

Try this for a while to make sure things work...the sound should
break in and the film cap should sound really sweet compared to
the electrolytic.

good luck and keep me updated,
Ray

July 15 , 2010
After having got my First-Aid training, CAN-BIKE certification, and a cell phone, it was with much regret that I had to pull out of volunteering for the Waterfront Trail ride...not a good day based upon the advice from a Doc.

May 5 , 2010

canbike class
(click to enlarge)

That's my graduation photo you are looking at from my CAN-BIKE course. My years of riding back and forth from high school had served me well and many of the points made in the course seemed logical and well thought out. The thing that made the most impact were people who came into the course so that they were not so fearful of riding within the city. One person got caught on the street car tracks on two successive days...can you spell body slam !!!

Jan 10 , 2010

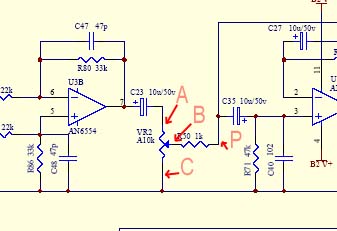

I got pinged by a someone playing in a small band about noise when operating the volume know on his Art SLA-1 amplifier. The input stages of op-amps typically are AC coupled by large capacitors to remove the DC content. If not, the wiper of the potentiometer would gradually degrade over time. The degradation are resistive hotspots developing between the body of the resistive element and the surface where the wiper taps. One way to make a non-polar electrolytic from a polarized unit is to wire them up back-to-back (i.e. tie the minus together when they are used in series). A variation of this is show in the diagram below from the volume section of the SLA-1:
