I had difficulty finding simple graphical HF band plans, so I drew some myself using CorelDraw. The information is taken from the band plans published in the Radio Society of Great Britain call book, 1997 edition.
If you would like higher resolution versions or the original CorelDraw files then email me at A.Dornford-Smith@qub.ac.uk. The CorelDraw files are designed on a grid and so are easily customiseable, for example your favourite net frequency can be added simply. Sorry I haven't done a 160 m band plan (or any other band) yet, I may do so if anyone asks for one. Guess who's got a Yaesu FT-707 that doesn't cover 160 m!

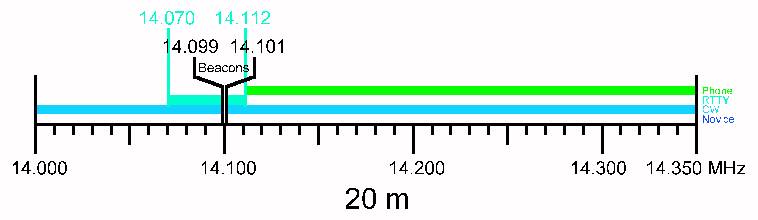

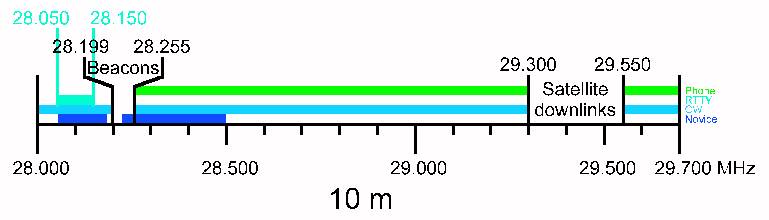

10 m, 28 MHz band plan | 20 m, 14 MHz band plan |

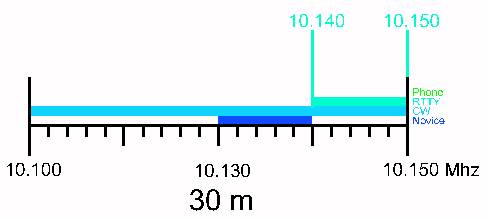

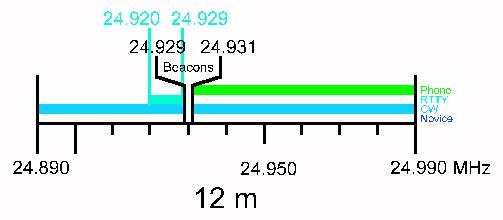

12 m, 24 MHz band plan | 30 m, 10 MHz band plan |

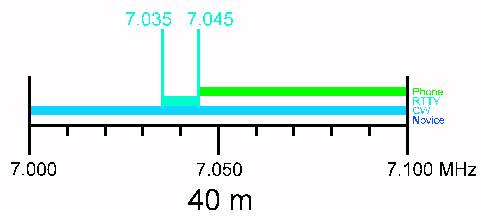

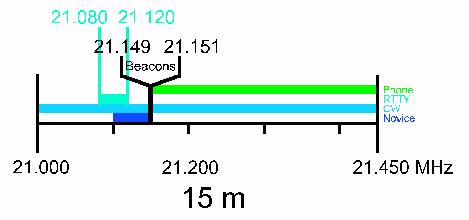

15 m, 21 MHz band plan | 40 m, 7 MHz band plan |

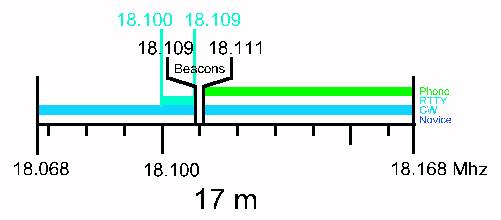

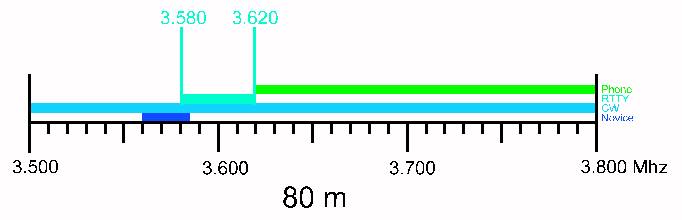

17 m, 18 MHz band plan | 80 m, 3.5 MHz band plan |
