Suspension


Front

September 15, 2003

I have rebuilt the front suspension using urethane bushings wherever possible. Rubber ones wear out and fail quickly in a regular 4 cylinder MGB, so I thought they would be awful in a V8 powered MGB. In addition to the urethane bushings, I replaced the entire lower wishbone components and the springs. I went with lowered springs bought from Moss Motors. They, according to Moss' catalog, should place the ride height at the old chrome bumber MGB height. The shocks were fine so I am simply reusing them. I will eventually add a 3/4" sway bar in the front . The dust shields for the disc brakes are made of stainless steel and I bought those through MGOC Spares.

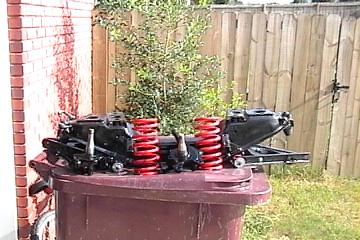

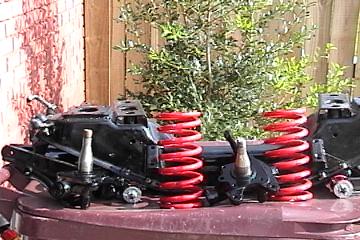

parts                                                          parts1

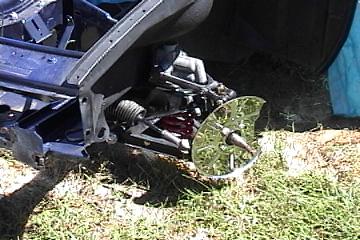

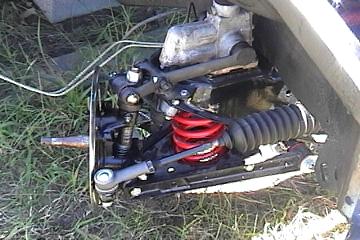

Left side Suspension                                                         Right side suspension

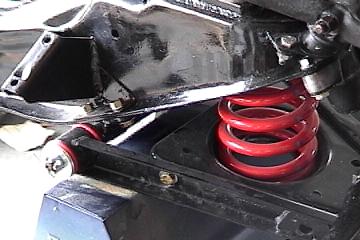

parts

Rear

January/February 2005

Never being one to take the easy way out, I decided to use a Jaguar XJ-S rear suspension in the car. As it turns out, I can buy one of these with disk brakes included for less than I can buy a live axle , have it cut down, and put disk brakes on it.  The Jaguar has an independent rear suspension, and I must admit it is not my original idea. There are at least two web sites showing Jaguar independent rear suspensions in V8 MGBs. These are the ones I found:

Evan Amaya's

A british site

I called Evan Amaya several times and he has been great help in my attempt to pull this rear suspension conversion off. He is actually having the axles and lower control arms cut to size for me right now. I had difficulty getting a locl machine shop to do it because they were afraid of the heat reated axles. I guess they don't know how to re-heat treat them after the cut and weld.  The  suspension looked rough when I received it. Apparently it had been sitting out in the weather for a long time. This is what I received initially:

susp when I got it

I did a little searching on E-bay and found a suspension housing in California that the guts had been taken out of. I ended up winning the auction for $1 and paying the shipping to have it sent to me. The housing looks great and I am reconditioning and alteriing the parts taken off the rust bucket and placing them in the new housing.  To cut the housing down, I simply identified the center point on the housing with a paint pen, measured the width of the MGB body (between the fender wells on the indide -34") and marked 17" outward from the ceter mark. Then I cut off everything beyond the 17" point, which worked fine because the shock and other mounting points are all inside that measurement.  The battery box and the mounts for the rear sway bar had to be cut off to make room for the suspension housing. The batter will be relocated to the trunk.

The differential is actually a Dana 44 one, which is great! They are used by hardcore off roaders because they are very hard to break. This one has a gear ratio of 2.89 and had a limited slip mechanism inside that is like positraction, only it lets the wheel slip a little to aid in cornering.  The ideal ratio would be 3.07, but this is not far enough off to be too concerned about.  Gear sets can be changed out without a lot of trouble anyway.  I have seen hot rod sites that claim that  these suspensions will withstand 500 horsepower, so my 230 or so shouldn't break it.  This is what it looks like now (02/17/2005) (no shocks or axles):

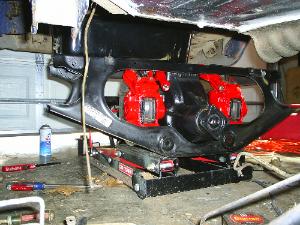

Jag Suaupension                                   Jag Rear Suspension

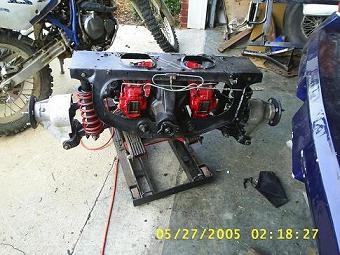

Early On                                          Fully loaded

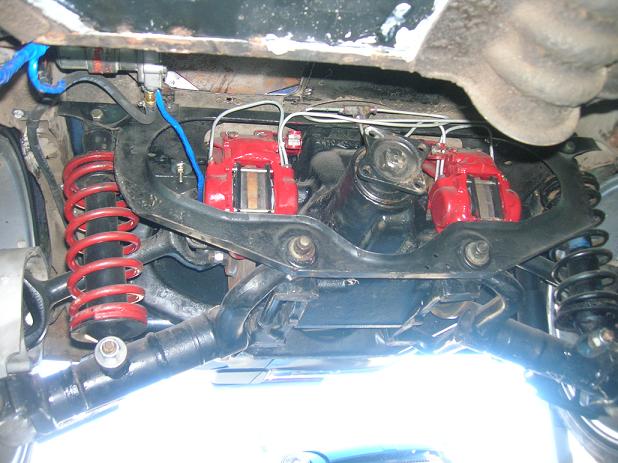

Suspension rear 11/05

Installed
