The Intel 8085 microprocessor

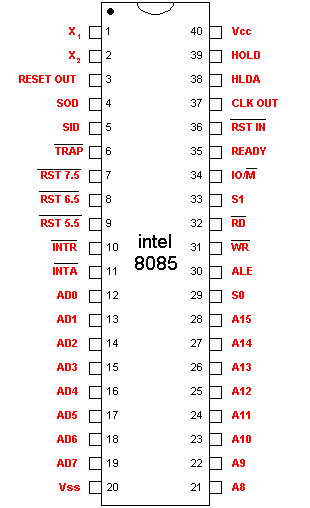

Pin Description
1,2 These terminals are directly connected to the Crystal.
3 Reset Terminal which can be used in reseting other memory and peripheral devices.
4
Serial Output Data. This terminal are TTL output lines which can be used to transfer serial stream of data.
5 Serial Input Data. This terminal are TTL input lines which can function as an input line to read serial stream of data
6-11 Interrupt Lines. This will be discussed later in Chapter 6
12-19 Multiplexed Address and Data Lines
A0-A7 and D0 to D7
20 IC Ground Path
21-28 Address Lines A8-A15
29 State Status LSB
30 Address Latch Enable
31 Write Control Line (Active Low)
32 Read Control Line (Active Low)
33 State Status MSB
34 IO / Memory Control Line
35-39 Machine Control Lines. This will be discussed later in Chapter 6
40 5Volts DC Supply Line







5.0 Vdc Supply Input Upper 8 bit Address Lines Multiplexed 8 bit Address and Data Line Interrupt Acknowledge(Pls. Read Chapter 6 for a much detailed discussion on the matter) Interrupt Line(Pls. Read Chapter 6 for a much detailed discussion on the matter) Interrupt Line(Pls. Read Chapter 6 for a much detailed discussion on the matter) Interrupt Line(Pls. Read Chapter 6 for a much detailed discussion on the matter) Interrupt Line(Pls. Read Chapter 6 for a much detailed discussion on the matter) Interrupt Line(Pls. Read Chapter 6 for a much detailed discussion on the matter) Serial Input Data (An input line which can be utilized in reading serial data input) Serial Output Data ( a terminal that can be utilized by the program in transferring serial data to external devices) Reset Signal Generated by the 8085 which can be used to reset other peripheral or memory devices Crystal Oscillator Terminals
