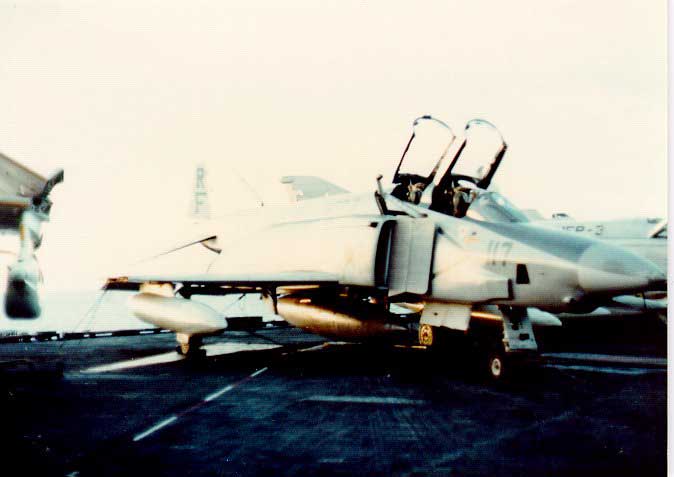

1       1MAWInsig.jpg	2       vmcj1Insig.jpg	3       f4back.jpg	4       FlightlineVMCJ3.jpg	5       rf4001.jpg
6       rf4002.jpg	7       rf4003.jpg	8       rf4004.jpg	9       rf4005.jpg	10       RF4006.jpg

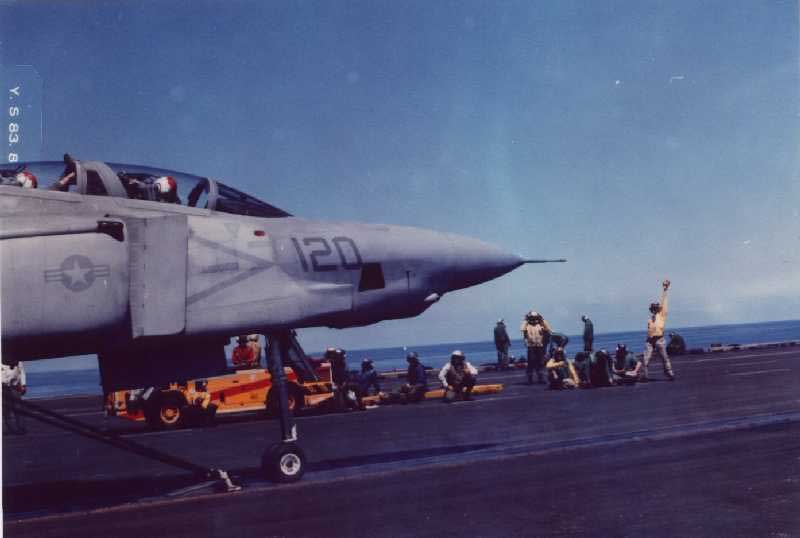

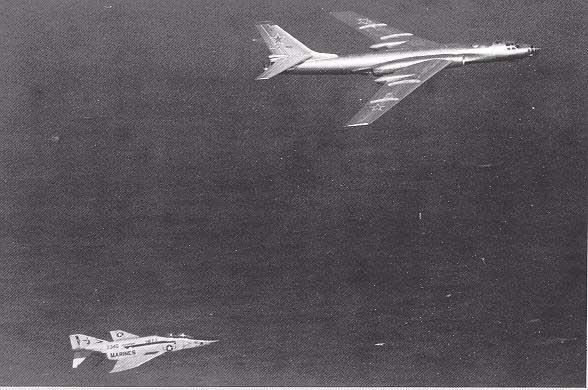

11       RF4007.jpg	12       rf4008.jpg	13       rf4009.jpg	14       rf4b0011.gif	15       RF4BFront.jpg

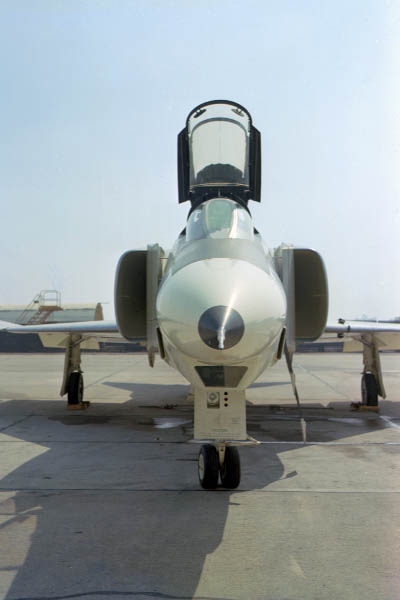

16       RF4Bhist053b.jpg	17       RF4BRF 614750919s.jpg	18       RF4BTakeoff.gif	19       RF4Front.jpg	20       RF4Vmfp301.jpg

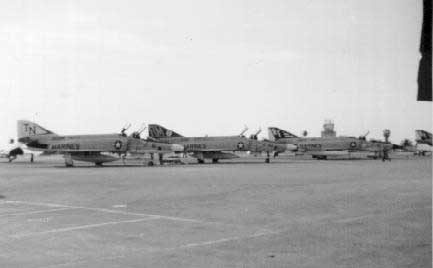

21       RF4Vmfp305.jpg	22       RF4Vmfp307.jpg	23       RF4Vmfp310.jpg	24       RF4Vmfp312.jpg	25       RF4Vmfp313.jpg

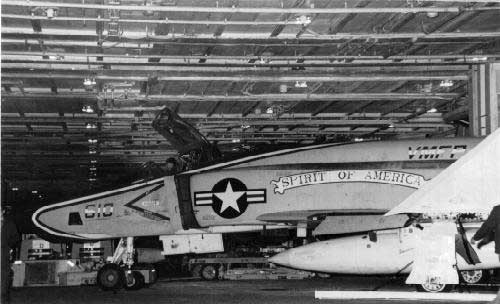

26       RF4Vmfp315.jpg	27        RF4B0001.jpg

The RF-4Bs first flight was 12Mar65. All 46 of the first RF-4Bs went to the Marine Corps. The last twelve RF-4Bs were built on USAF RF-4C frames with larger tires, wheel wells and reinforced wings. The RF-4B served with Marine Composite Squadrons: VMCJ-1, VMCJ-2 and VMCJ-3. The Navy elected to stay with the RF-8 Crusader and the RA-5 Vigilante, and did not order the RF-4.

FLIGHT PERFORMANCE DATA
WING SPAN - 38' 5"
WING AREA - 530 SQ FT
LENGTH - 62' 11"
HEIGHT - 16' 6"

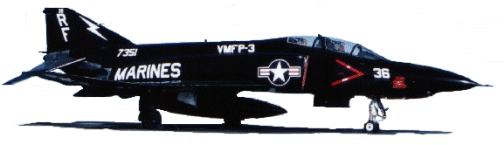

EMPTY WEIGHT - 28,276 LBS
GROSS WEIGHT - 54.800 LBS
ENGINE - 2 x GENERAL ELECTRIC J-79-GE-8
THRUST - 10,900 LBS EACH / 17,000 LBS WITH AFTERBURNER
MAX SPEED - 1,407 MPH
CRUISE SPEED - 580 MPH
CLIMB - 47,500 FPM
ARMAMENT - CAMERAS AND SENSING DEVICES ONLY
