  Saver ® Informática
CD-ROM Creative Labs iNFRA
Control Remoto Multifunciones

 iNFRA CD-ROM La unidad incluye:
Control Remoto Infrarojo, Batería de 3V, Cable IDE 40 pines
Cable de Audio, 4 Tornillos, Drivers en Diskette y CD-ROM.
 		Transferencia:
48x = 7,200 Kb/s Sostenido
52x = 7,800 Kb/s Sostenido

Interfase:
EIDE ATAPI

Sistema Mínimo:
486 100 MHz
8 Mb RAM
6 Mb de espacio en disco duro
Windows® 3.x/9x
Conector IDE
Bahía de 5 ¼" de media altura

Controles al Frente:
Volumen +/-
MODE
Pause/Back
Play/Forward
Stop/Eject
Copiado de la Página de Creative Labs:

The Creative iNFRA is a multi-session CD-ROM drive from Creative.
This drive comes with a standard IDE interface which complies to ATAPI specifications.

Physical Appearance
5.25" Half-height size
IDE interface
Motorized tray loading mechanism
Horizontal mounting
Support 120mm & 80mm discs
Stereo Headphone jack
Busy led
Infrared Sensor
Volume Control buttons
Mode button
Pause/Last Track button
Play/Next Track button
Stop/Eject button

CD Formats/Modes Supported
CD Digital Audio
CD-ROM (Mode 1 & Mode 2)
CD-ROM XA (Mode 2, Form 1 & Form 2)
CD-I
Photo CD (Single & multiple sessions)
CD-WO (Orange Book Part II - Read only)
CD-I Digital Video (using separate MPEG playback solution)
CD EXTRA (CD Plus)

Transfer Rate Specifications

48X Speed (Mode 1) - 7200 Kbyte/sec
52X Speed (Mode 1) - 7800 Kbyte/sec

SingleSpeed (Mode 1) - 150 Kbytes/sec

Operating Systems Supported
Windows Ver 3.1/3.11
Windows for Workgroup Ver 3.1/3.11
Windows 95 / 98
MS-DOS 6.2X

Other Information
Data capacity:
- Mode 1 - 682 Mbytes
- Mode 2 - 777.9 Mbytes
1/3 stroke (typical) access time - 85 ms typical
Buffer Memory - 256 Kbytes
Line-Out - 0.7 Vrms (Load = 50kOhms)
Headphone - 0.6 Vrms (Load = 32 Ohms)

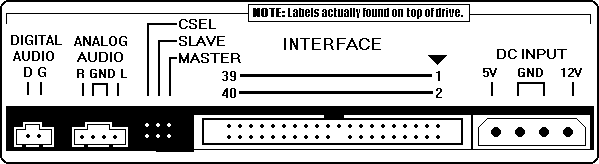

Vista Posterior:

iNFRA CD-ROM
