Security Modification

09/24/08



Here is a mod that I dreamed up, that, enhances the existing security system. The point of this idea is to make the security system more visible and audible while in the "armed" mode.

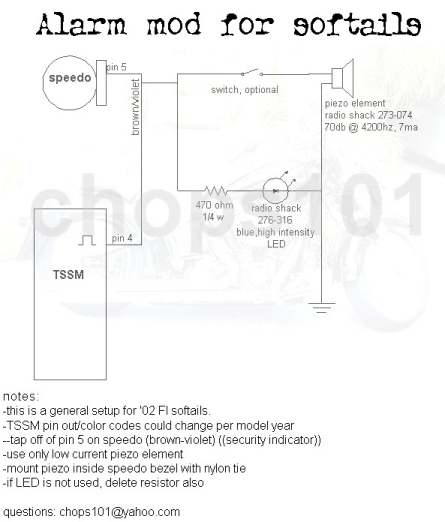

I added a high intensity, 8000mcd LED to the flashing "key" light that exists in the speedo. I mounted my LED on the triple tree cover. The external LED is much more visible to passers by.

I also mounted an audible piezo element inside the speedo console that "chirps" in sync with the LED. The piezo element is very low current draw, and is not overly loud by any means. I have had this setup in place for ~2 years with zero problems. It will not drain the motorcycle battery, provided the bike is started every few weeks.
