Back County Nerf Bar Installation
I installed a pair of Back Country 3" polished stainless steel nerf bars on my 1997 GMC Highrider. They mount, work and look sweet. You can find them at Custom Truck Products. The ZR2/Highrider part numbers for the extended cab is 6062 and extended cab w/ 3rd door is 6064. For regular cabs, call and they will give you the part number.
I transferred the bars to my 2000 Highrider a few months ago and they're still looking great. I did repaint the mounting brackets before I put them on, but other than that they look like new after 3 Wisconsin winters.
|
Front Mount |

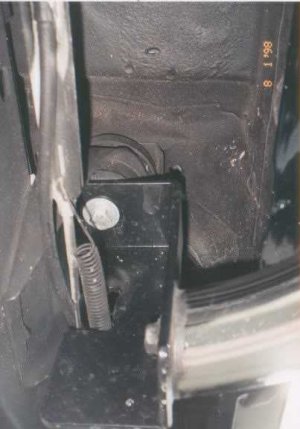

Rear Mount |

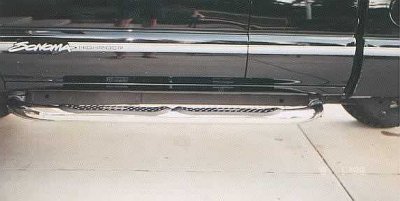

Installed on 97 Highrider

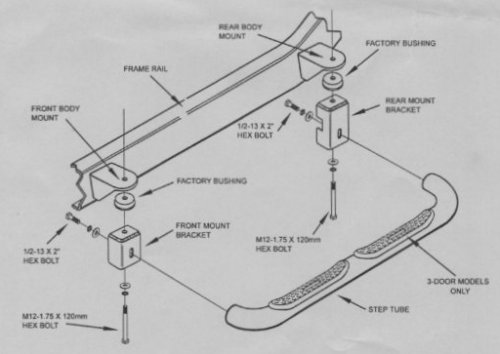

Installation Instructions
Back Country S-10 Extended Cab 6062 / 6064 Engineered Step Tube Installation Instructions
CONTENTS:
(2) Step Tubes
(2) Front mount brackets
(2) Rear mount brackets
(4) M12-1.75 x l2Omm
hex bolts
(4) 1/2-13 x 2" hex bolts
(8) 1/2" flat washers
(8) 1/2" lock washers
- Remove the factory bolts in the front and rear body mounts that go up into the truck cab.
- Install the supplied M12-1.75 x 120mm bolts through a lock washer, flat washer, mount bracket and into the body mount. The mount bracket with the parking brake cable recess goes in the rear. Snug the bolts, but do not tighten at this time.
- Bolt the tube to the brackets with the two 1/2-13 x 2" hex bolts, lock washers and flat washers. Snugly tighten the bolts, then check the alignment of the tube against the rocker panel. Make any necessary adjustments, then tighten M12 fasteners to 45 ft/lbs. and 1/2-13 bolts to 50 ft/lbs.
- Repeat steps on opposite side of the vehicle.
