THE LUV BUILDUP!!!
This page will have images and descriptions on the buildup of my 1980 Chevrolet LUV truck.
Previously there was a 1978 Buick V6 and 5 speed that was the heart of the luv for more than 7 years.
_________________________________________________________________________
UPDATED
05/07/04
The engine and transmission are in and all the fuel lines are run. I still have the alternator mount, miscellaneous wiring, radiator hoses, driveshaft, battery cable, mounting battery, cutting hole in bed for access to fuel cell, radio, accellerator cable, shifter....etc....etc.....slowly but surely I am getting there!
_________________________________________________________________________
May 18, 2002 - I fabricated an instrument cluster to replace the original cluster.
picture --->PICK HERE or PICK HERE the fuel level will be installed where you see the voltmeter. I just received the fuelgauge last night, so that will be in place soon.
_________________________________________________________________________
May 21, 2002 - I removed the front fenders, bumper, cowling and headlights so I can begin running the "hidden" wiring
Pictures of Luv with fenders off......just incase you wonder what it looks like.....taken 05/29/02
picture --->PICK HERE or PICK HERE or PICK HERE
_________________________________________________________________________
June 7, 2002 I was in the middle of rewiring and decided to mount the S2000 Start button.
an install found on this miata page PICK HERE
picture ---> PICK HERE or PICK HERE or PICK HERE
_________________________________________________________________________
I ordered relays and connectors the other day from parts express.
part numbers found on this website --> PICK HERE
there is also a good headlight re-wire on this page for all of you who are sick of those dim headlights.
_________________________________________________________________________
I finally finished the wiring phase of the project. these pictures were taken 10-17-02
the pictures below show the gauges in the truck and the engine compartment. sorry about the darkness of the pictures. I didn't have time to roll the truck outside for extra light.
PIC1 HERE PIC2 HERE PIC3 HERE PIC4 HERE PIC5 HERE PIC6 HERE
_________________________________________________________________________
picture added 12-27-02
The fuel cell is mounted now. all that is needed is a little paint and rubber for the straps and I am finished with it. gotta mount the fuel pump now.PIC1 HERE
_________________________________________________________________________
pictures added 1-13-04
Ok so I haven't posted any pics in a long time....prolly cause I haven't worked on it in a long time. I tacked in the coilover mounts for the front suspension and have added pics.
COILOVERPIC1 COILOVERPIC2 CLOSEUP OF MOUNT
____________________________________________________________
pictures added 1-21-04
the vega rotors are on. the install page is HERE
a few pics after I got finished with the rotor install.
ENGINEIN ENGINEFRONT ONGROUND ENDOFDAY
__________________________________________________________
pictures added 2-06-04
__________________________________________________________
pictures added 3-17-04

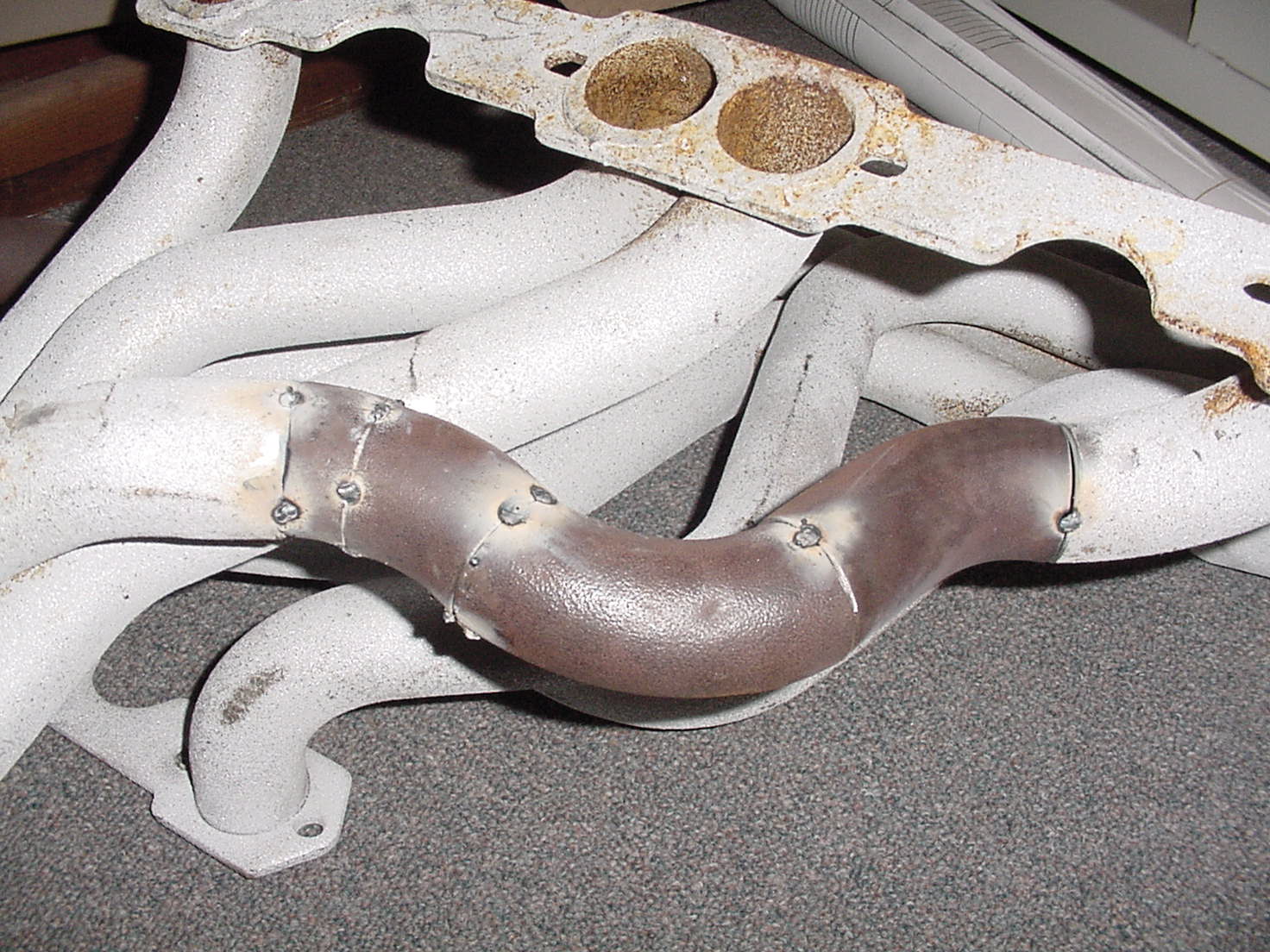

My heads have angled plugs. here are pics of the tube I had to move on the headers to clear for one of the plugs. these pics are with the tubes tack welded in place. soon to be tig welded and re-coated.
______________________________________________________________________
pictures added 4-16-04
Here is the fuel cell, filter and fuel pump piped in.
______________________________________________________________________
pictures added 5-7-04
Here is the radiator mount before engine installation.
______________________________________________________________________
pictures added 5-7-04
Here is the engine before installation.
___________________________________________________________________
pictures added 6-8-04

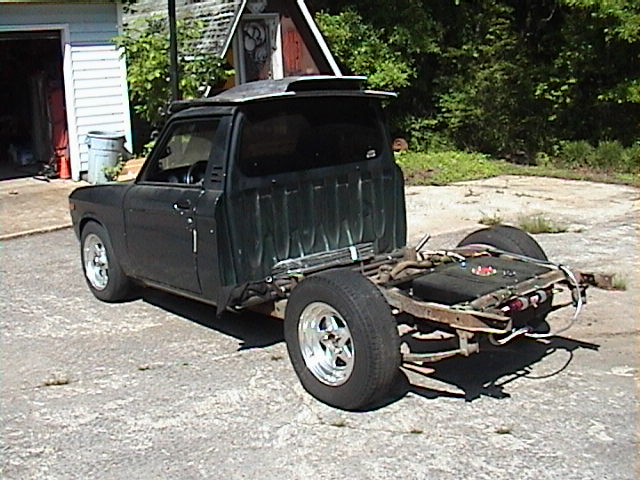

here are pics with the truck rolled outside
___________________________________________________________________
I will be working on the truck more soon.....details when I do
