Specifications |
Z30-100" |
Z 303 |
|
Retracted lift rating |
32,000lbs |
32,000lbs |
|
Extended lift rating |
20,000lbs |
13,000lbs |
|
Tow rating |
85,000lbs |
85,000lbs |
|
Weight of unit |
1,750lbs |
1,850lbs |
|

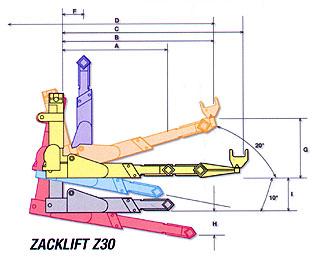

A. Retracted distance |
57" |
55" |
|
B. Reach |
100" |
119" |
|
C. Reach with 12" Bus Extentions |
112" |
131" |
|
D. Approx reach, center of axles to forks |
155" |
174" |
|
E. Reach to Center Stage Extension
Rating at center stage |
|
100"
20,000lbs |
|
F. Distance from tailboard when stored |
11" |
11" |
|
G. Upward tilt, max. lifting height |
22deg., 65" |
22deg., 71" |
|
H. Tilt below ground |
8Deg., 7" |
8Deg., 8" |
|
I. Downstroke on lift cylinder |
17" |
17" |
|
 |
