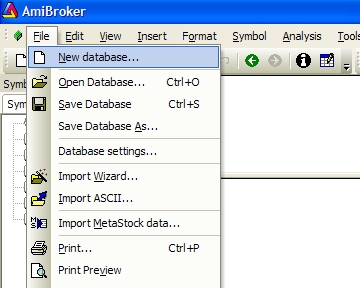

This Software Feeds Live RT data from PIB to Amibroker. Click here to Download Software Updates are available at 'File' section of Group - http://finance.groups.yahoo.com/group/CEMCOMPUSOFT/files/ How To Use The Software - Start Amibroker Go To File - New Database

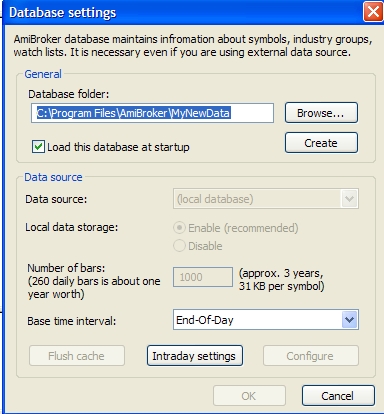

Click On 'New Database...' You will get following window -

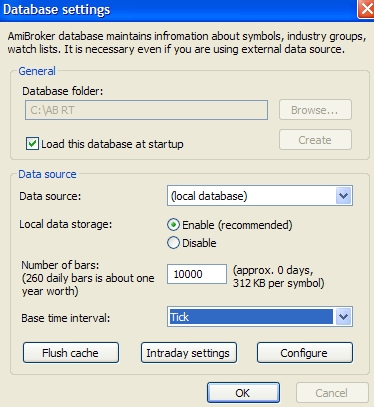

Click on 'Browse...' Button. Select Any Blank Folder & click 'Create' Button. Change the other settings as following Image -
Click 'OK' Button. Now New Database for Intraday data has been created.
Do Not Close Amibroker.
Now Start PIB software (PIB is a trading software of India Bulls) & Login to you account. Open Your Market Watch Window.
If you have login after opening of market (currently 09.55 PM.) then select every script of your market watch & right click on it & select 'charting'. You will get chart of that script. Right Click on Chart & select 'Synch'. Now Close the chart. Above steps are necessary for backfill. This is required only first time if you login after market opening or if you got disconnected during market hours.
Do Not Close PIB.
Now Start our software PIBtoAB. (Make sure that PIB & Amibroker are running) Click on 'Online (During Market Hours)' from Main Menu, as shown below -

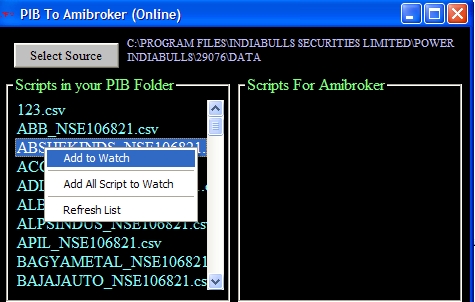

You will get the following window -
Click on Button 'Select Source' & select the path of 'Data' folder of your PIB. This will be in folder 'Your Client ID', in folder where you have installed PIB.(PIB folder/ClientID/Data). You will get list of all your 'market watch' scripts in left pane ('Scripts in your PIB Folder') as shown above. Right Click on any script & select 'Add to Watch', as shown above. This script will be added in Amibroker & you will get live chart, updating continuously with PIB. Also, this script will be added in right pane ('Script for Amibroker').
To remove any script from updating, Right Click on right pane ('Script for Amibroker') & select 'Remove'.
Sometimes you may not get script list in left pane ('Scripts in your PIB Folder'). This is when you login to PIB before market hours Or If you have not 'Synch', as explain above. To get scripts list, press 'Refresh List', as shown in above image. (After 2-3 mins of Market Opening).
|
|
