HK/CETME Kit Building

Our HK/CETME pages are under construction...more information and pics will be provided as we can get to it. Thanks for checking!


Our kit building procedure:


* Remove old flash hider

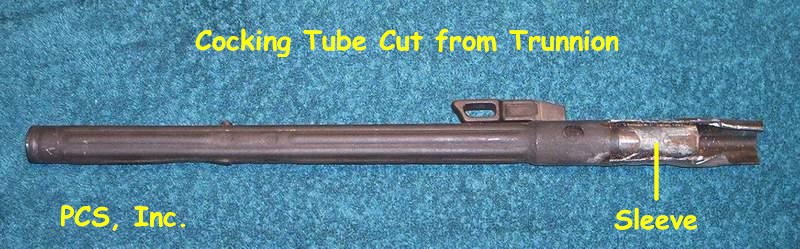

* Cut cocking tube from trunnion


* Cut scrap stub metal from cocking tube on lathe, preserving sleeve


* Remove scrap metal from trunnion


* Remove soldered sight post from barrel

* Remove barrel from trunnion if needed

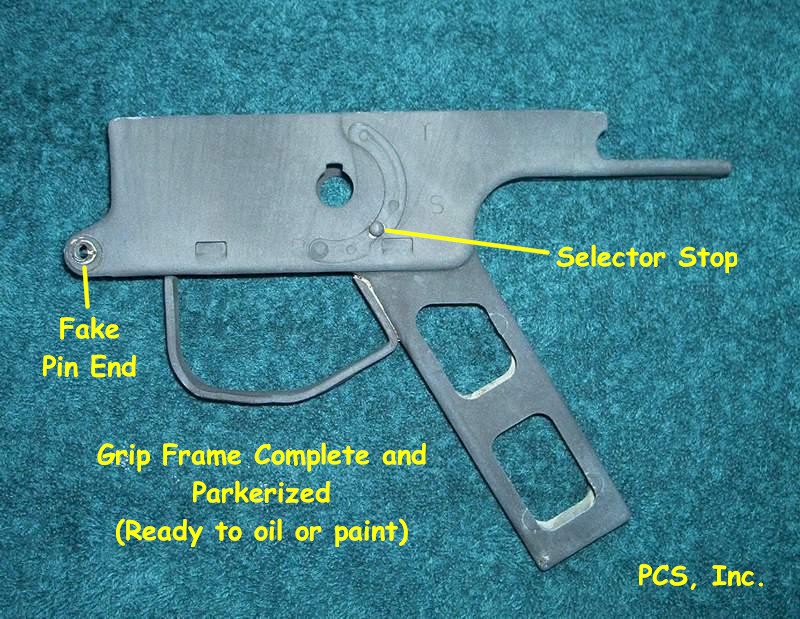

* Trigger pack and grip frame mods:

- Notch front of trigger pack per ATF specs


- Install US trigger parts if needed

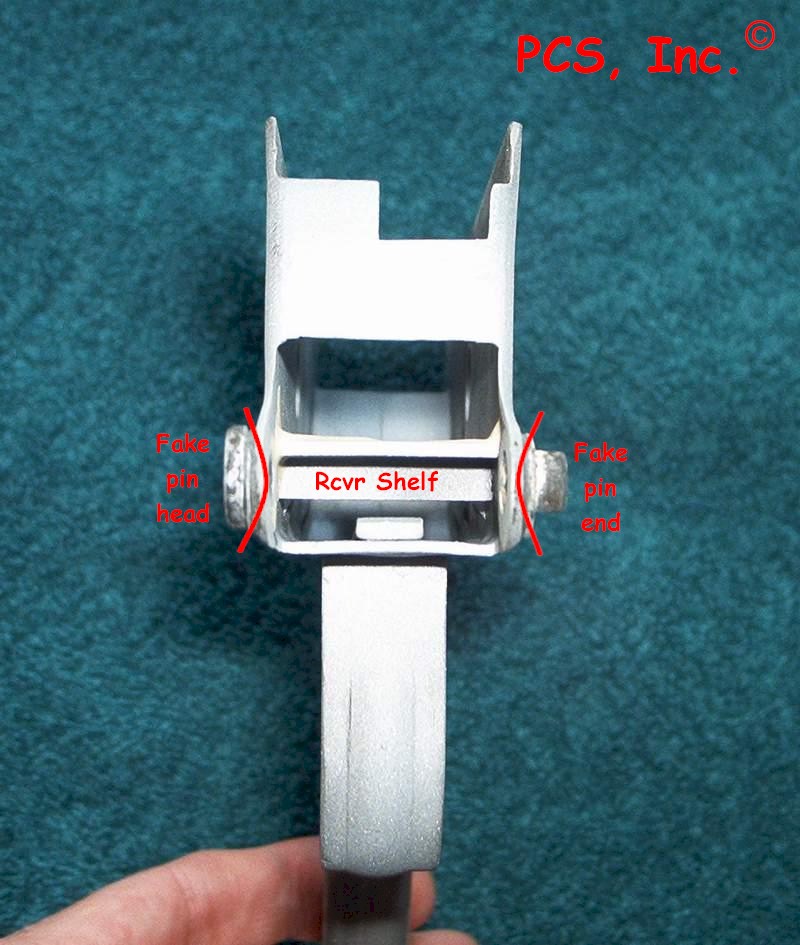

- Weld/braze support shelf in grip frame


- Make/silver solder selector stop on grip frame


- Retain fake front pin look (silver solder pin ends on each side of grip frame)


- Cosmetic touch up and epoxy painting of grip frame (Matte Black left below, Semi-Gloss right below)

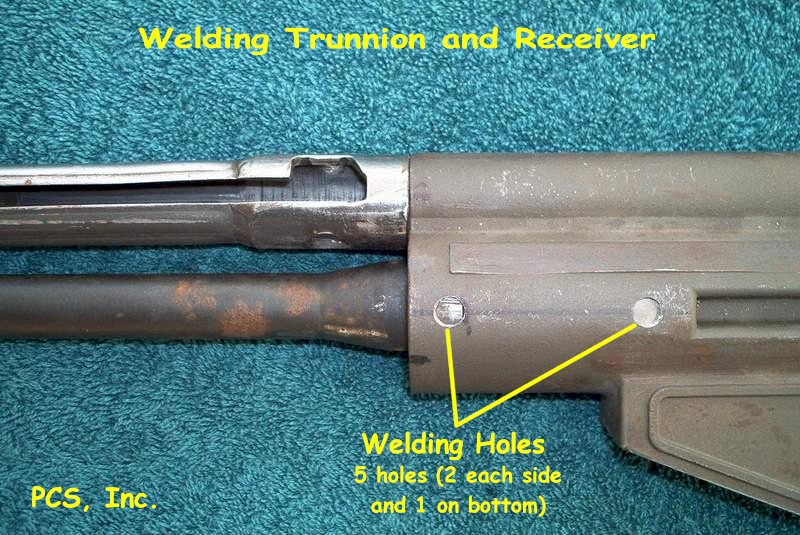

* Locate and drill weld holes in receiver (5 places)

* Prepare receiver for cocking tube and barrel pressing

* Press barrel into receiver

* Align cocking tube

* Press cocking tube into receiver and check for function

* Solder sight post and weld retaining pin on barrel

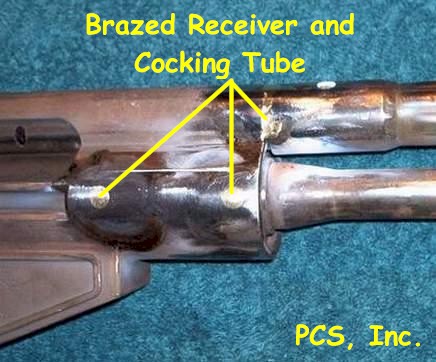

* TIG weld cocking tube and trunnion to receiver (Stainless receivers MUST be painted; Read notes below carefully)


* Cosmetic touch up and epoxy painting of upper (Matte Black left below, Semi-Gloss right below)


* Install paddle (extra charge; see note below) or standard mag release parts

* Install barrel type or paddle wheel rear sight parts if needed

* Fit buttstock to receiver

* Install muzzle device if needed

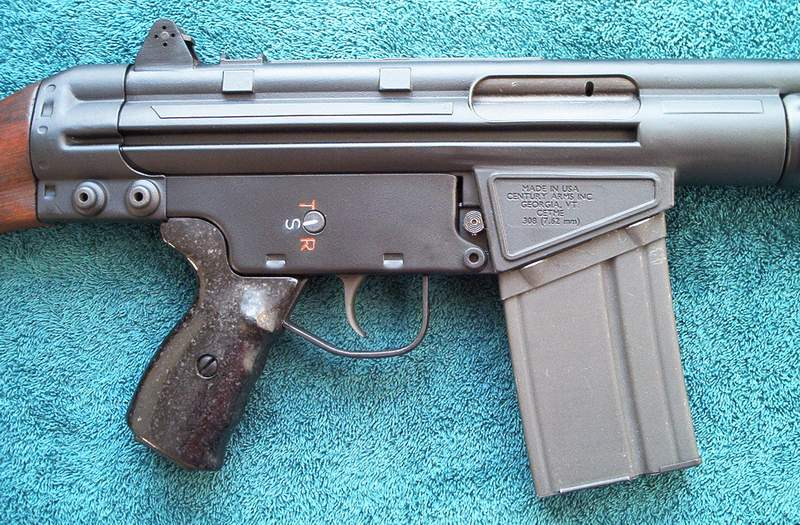

Completed Kit with Welding and Fitting Details

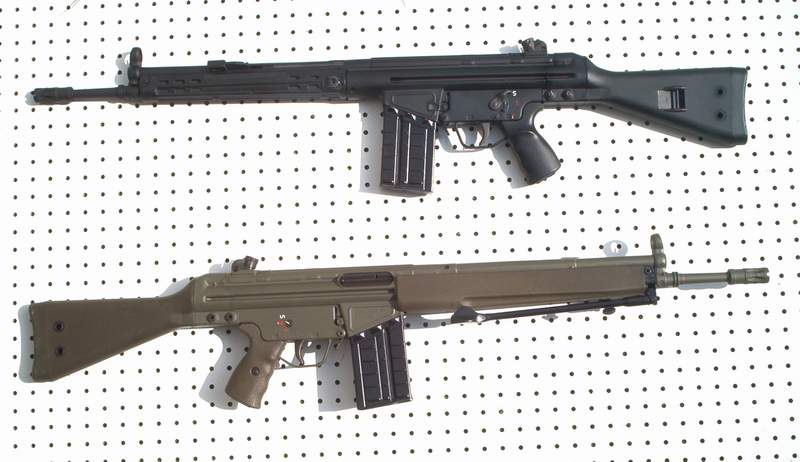

G3's in Matte Black and Olive Drab Epoxy




  1. You supply all parts, including the required US made compliance parts.
  2. Stainless receivers MUST be painted rather than Parkerized.
  3. All rifles will be TIG welded at cocking tube to receiver and trunnion to receiver.
  4. TIG welding provides focused heat and CAN be Parkerized.
  5. Extra charge for installing paddle mag release per ATF specs. You supply parts. $100 (Note: Can't install on some receivers)
