This page is under Construction. Welcome to My new Site. This site Contains pictures of my First solid state ATV transmitter.

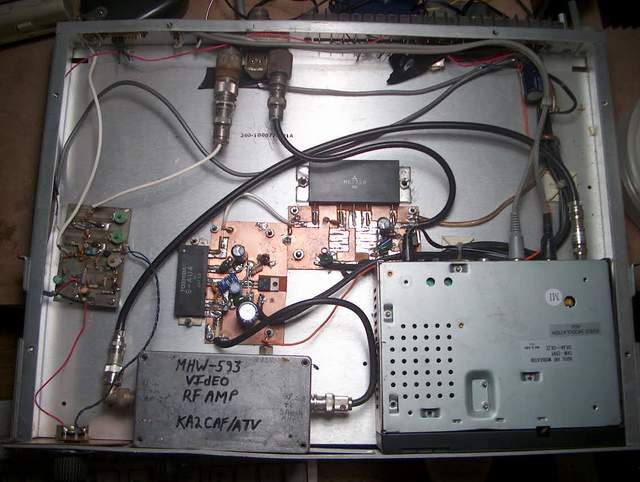

A pic of the insides of the 50 watt transmitter

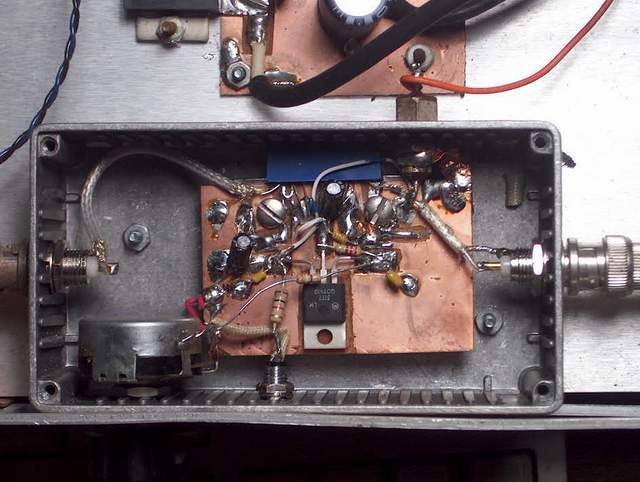

This is the First IPA after the CAM-25 Hyper modulator made of the MWH-593 RF Brick. this is the video drive stage to prevent sync compression

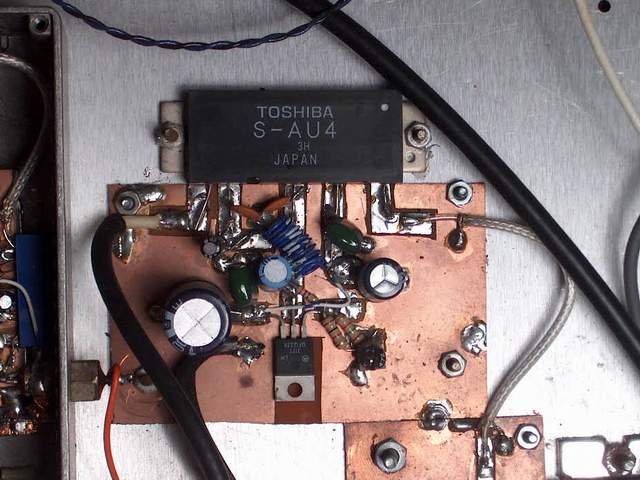

This is the SAU-4 Second stage IPA. giving I believe 4-10 watts RF to drive the Final Stages.

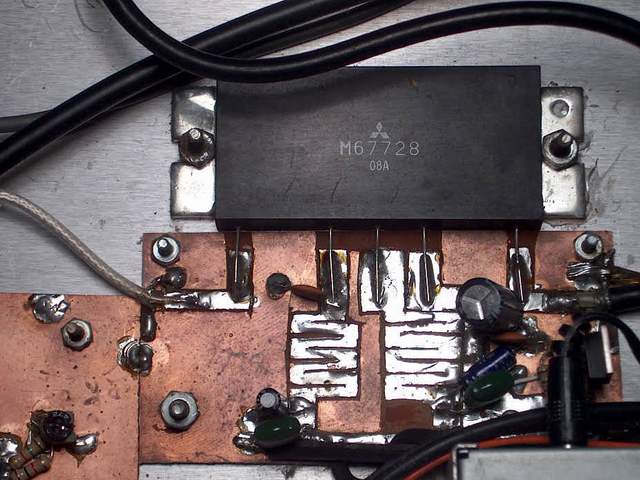

The Final Amp is a 75 watt Brick.
The Wyman-Research ATV receiver this is a Tuneable Varactor receiver that gives an output to channel 3VHF to use with a standard TV.
This is a 4 bay Horizontal ATV antenna made by Samco
