NET-5 MOVING COIL



This is a very simple module to make, no electronics knowledge is needed as it requires no power at all.

This is a very simple early link at the moment due to users interest in this module, photos and indepth instructions follow very soon.



FRONT PIC

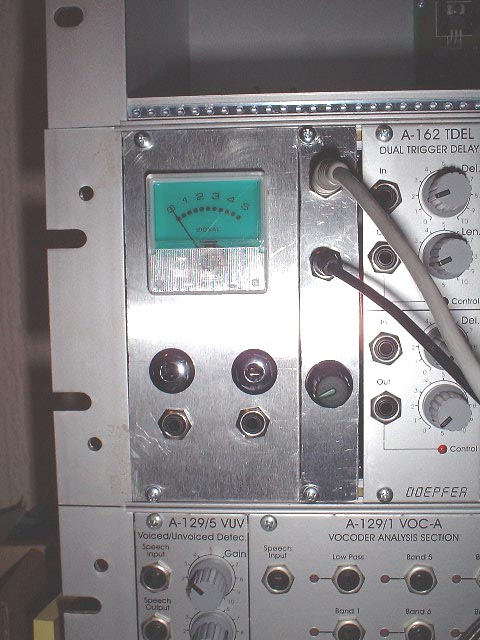

Here's the pic of the moving coil module I built, as you can see I have added large jacks as well as mini-jacks.

REAR PIC

This is the view from the rear of the module, as you can see very simple, just make sure your wires are long enough for when you put it together into the front panel.



PARTS REQUIRED

1 Moving Coil

2 Mini-Jack Sockets

1 Aluminium sheet (or something similar) for front panel

wire and solder
