Multiple Plate Sensor System
IPAS Links
Chris's Stop Plate Construction Site - How to build a stop plate and sensor. The stop plates can be used with this system or Chris's own latching circuitry.
Practical Pistol Bulletin board - Talk about Air Guns (CO2/Brocock/AirSoft). Find out about competitions, clubs etc.
IPAS Rules/Stage Layouts etc. - Find out about Iron Plate Action Shooting.
Introduction
The difference between this sensor system and others is the absence of a need for a reset button, and therefore, reset wires. The circuitry containers a timer which can be set to long or short (currently I am suggesting 1 and 9 seconds, although these can be specified prior to construction). The LED lights after the attached sensor is triggered. After the specified period it goes out automatically. The ONLY long wire needed is the one that stops the timer.
Example IPAS usage
In competitions you would set the period to long whereas short would be used in practice or general plinking.
The Modules
There are two types of module, Standard and Timer modules.
Both Module types are in aluminium cases with an LED. The standard module takes either 2xAA or 1xPP3 (9V square type) and has one phono type connector for the sensor. The timer module needs 1xPP3 and has two phono type connectors, one for the sensor and one for the timer trigger.
Sensors
The Modules can accept normal switches as sensors but also take the preferred Piezo-electric type; they just have to plug into the phono input on the modules.

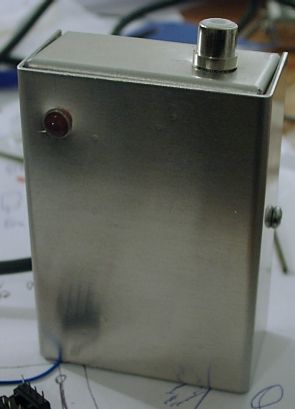

Standard Module
New Timer Module Circuit
Circuit Diagram
This is Circuit diagram for the latest Timer Module. It allows connection to both Normally Open type timers and Normally Closed type timers.
Timer Module Circuit Diagram
Components
Name |
Code/Description |
Maplin.co.uk Code |
Quantity |
Line Total (Ex VAT) |
Relay |
1A 6V Sub-Mini |
UG36 |
1 |
0.84 |
555 IC |
TS555CN |
RA76 |
1 |
0.42 |
Transistor |
C33816 PH76 (BC338) |
QB69A |
1 |
0.09 |
Capacitor |
GenElect 22uF 63V |
AT04 |
1 |
0.20 |
Capacitor |
Monores Cap 0.01uF |
RA44 |
1 |
0.08 |
Resistor |
100Kohm |
M100K |
1 |
0.05 |
Resistor |
680Kohm |
M680K |
1 |
0.05 |
LED |
5mm Red HB LED |
WL84 |
1 |
0.25 |
Strip Board |
Strip Board 1039 |
JP46 |
1 |
0.67 |
DIL Socket |
8-Pin |
BL17 |
1 |
0.12 |
Phono Socket |
Chassis Phono Socket |
YW06 |
2 |
0.83 |
Battery Connector |
Rigid PP3 Clip |
NE19 |
1 |
0.25 |
Box |
Aluminium Box AB12 |
LF13 |
1 |
1.27 |
Total |
|
|
|
5.12 (6.02 Inc Vat) |
