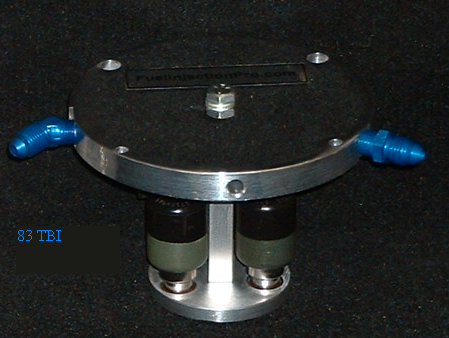

83 ECI Throttle body control upgrade kit: With this kit the stock computer and mass air can be removed which allows more air flow the use of larger turbos.. Includes: * New Injector mounting plate. (replaces old throttle body top cover and injectors.) Shown above. * Fuel lines, from filter and return , with AN type fittings. * FC-1 fuel injection controller. This is programmed ready to go, but changes can be made with software. * Wiring harness made for the Conquest. * Water temp sensor. * Air temp sensor. * Standard map sensor (good to20 psi). ( Instructions. Installs in about 4 hours. Please note that stock TPS must be used. * Two new 1025cc injectors. * New OVC pipe connector hose for throttle body end. (blue hi-temp) * Options are 3 bar MAP, P/N MAP-3 and idle air valve kit, IAV-1 and TD-1 hand held tuner/display. Note: If used with the stock ignition system the IAM-1 Ignition Adapter is needed please order from price list page.(Not needed with MSD system 6AL,BTM) ONLY $845.00 for a limited time!
