2004-2005 Subaru Impreza WRX-STI

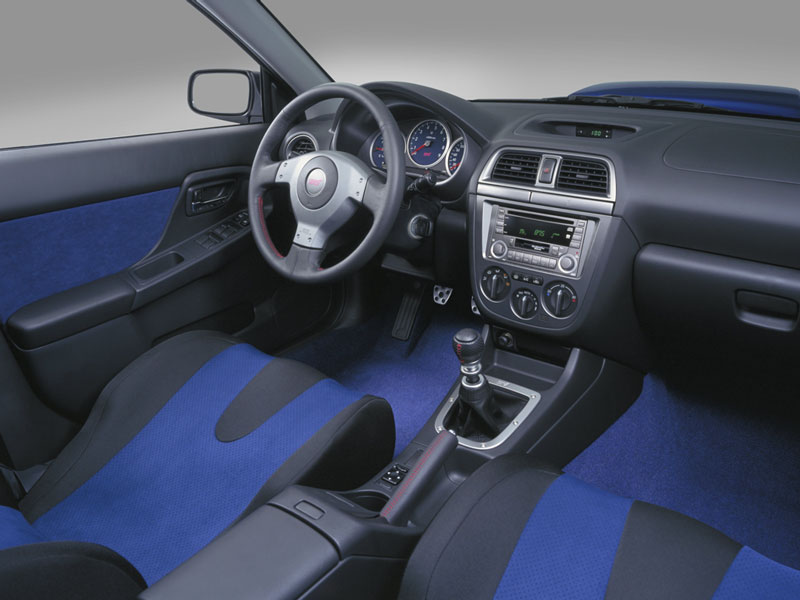

2005 WRX-STI 2.5L Motor	2005 WRX-STI Interior

1. Engine

2. Brakes

3. Wheels and Tires

4. Suspension

5. Available Colors

6. Racing Specs

7. Additional Information

1. Engine:

2.5L boxer DOHC (Dual Over Head Cam) 4 cylinder, 16 valve Turbocharged, high-boost, IHI Brand Enlarged Air-Intake Hood scoop with Water-Sprayed intercooler: manually operated hood-scoop water sprayer provides additional cooling to the intercooler. Drive-by-wire throttle. Aluminum alloy pistons. Cast iron cylinder liners. Reinforced "semi-closed deck" alloy block Forged high-carbon steel connecting rods. Resin composite intake manifold. Electronic Drive by Wire throttle Bore: 99.5 x 79mm, 3.92 x 3.11" Redline 9000rpm.  It runs 300hp@6000 rpm, 300ft torque@4000rpm at 8.2:1, Maximum Boost 14.5psi. It also has AVCS (Active Valve Control System) variable valve timing optimizes engine volumetric efficiency through the rev band Sodium filled exhaust valves.  It only comes with a 6spd manual with transmission cooler and a custom STI shift knob.  The STI requires 91 octane minimum and gets 18/24 city/highway miles.

                    Top of Page



2. Brakes:

This car comes with Brembo Disc brakes.  In the Front: Vented 12.7" diameter, 1.2" thick, Four-piston, fixed-position calipers. In the Rear: Vented 12.3" diameter,  .8" thick, Two-piston, fixed-position calipers.  It also has Super Sport Anti-lock Braking System (ABS), with independently controlled rear wheels.  EBD: Electronic Brake-force Distribution independently controls brake forces at each wheel, optimizing the braking ability during hard cornering, resulting in reduced understeer. EBD also provides a more precise control of braking pressure between the front and rear wheels based on the vehicle load to improve stopping distances and stability.

                    Top of Page



3. Wheels/Tires:

New 17x8" BBS alloy (17x8jj), 5 lug, 5x114.3 pattern.  225/45R17 Bridgestone Potenza RE070 Summer/Directional  Offset 53mm (it's been suggested not to go under 48mm) Available with Gold wheels, car model code 4JI and silver wheels, car model code 4JJ.

                    Top of Page



4. Suspension:

Sport-tuned independent McPherson-type inverted, alloy lower L-arms, liquid filler rear bushings, cross-member stiffener bar, front/rear 20mm sway bars.

                    Top of Page



5. Available Colors:

Aspen White, black cloth.

Platinum Silver (light silver), black cloth.

Crystal Gray Metallic (medium silver), black cloth.

World Rally Blue Pearl, black cloth.

Obsidian Black Pearl, black cloth.

                Top of Page



6. Racing Specs:

2004-2004 Subaru Impreza WRX-STI Track Times

0-30 mph	1.2 seconds
0-40 mph	2.2 seconds
0-60 mph	4.7 seconds
0-100 mph	10.8 seconds
1/4 mile	13.2 seconds at 100.1 mph
Braking 100-0	315 feet



                    Top of Page



7. Additional Information:

To view more specs on the 2005 Subaru WRX-STI or to purchase this car, go to:

http://www.cars101.com/subaru/impreza/wrxsti2005.html#new%20for%20WRX'

http://www.subaru.com/servlet/showroom?track=topnav_s&command=overview&webModelName=IMPREZA&modelYear=2005&webTrimName=WRX_STI_SEDAN
