Welcome to Hovercraft designs!

In the following pages you won't find the blueprints for the british Hover ferry but links to several new or outstanding Hovercraft designs.
All Hovercraft or surface effect vehicle are designed on common rules. Minimum weight, maximum strength, well balanced with the center of gravity just a little bit aft the centerline of the craft.
Quite big surface for the given payload (to hold cushion pressure low) and a skirt around the outer perimeter of the craft to hold the pressure under the craft.
But this does not mean that all surface effect vehicle have to look alike.
From Hovercraft which can circle around a peanut to high speed yacht tender - you will find a multitude of design variations from different designer. We will feature different craft from time to time as the information from the designers comes in our mailbox.
Pass by often and do not forget to tell your friends.


  Existing Designs

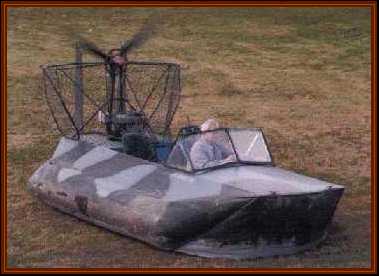

Sevtec:
            The Sevtec-Vanguard models are very lightweight, slow skimming HOVERCRAFTs with the advantage of maneuvering the vessel under control. There is a major breakthrough over other HOVERCRAFT with the deflatable front skirt, which is using friction as turning help. Several  Sevtec models are in use with Park and Wildlife Service. The missing capability of speeds exceeding 25 miles (was informed of speeds of up to 40 ) positive flotation in the 1" foam composite hull-and a not secured seat are my reasons for not building one! But please read in our guestbook Barrys arguments since on this page are personal opinions! You fly it !

Universal Hovercraft: -UH 12T4
                                                  The Universal HOVERCRAFT models are superior in body shape and make use of the integrated stringer (known from high speed race boats for adding strength without increasing weight). They get close to the optimal strength form which is known from nature over architecture  to be a triangle shape and fill the goal of producing reasonable speed (UH 12T4 is in the 40 miles range). The low center of gravity and the good relation of weight / strength is making it an outstanding craft .


  Please use our list server if you want to get informed about new designs!
Join our mailing list!
Enter your email address below,
then click the 'Join List' button:
Powered by ListBot
Design outlines for
4wings - Hovercraft's.



After you have seen what is already done,  we got the feeling that there is still a lot to change.
These design outlines are just for our project's and crafts - and every daredevil can skip them.
Our background is extensive cruising in the Golf of Mexico region - 3 hurricanes and 7 tropical storms aboard our catamaran "Waterbug". After all this wet history, we are mostly concerned about the safety of a water craft - Hovercraft or sailboat does not make any difference in a squall.
But we want to mention here that we are into cruising Hovercraft (2-4 Person Payload) and not racing.

Flotation :
A water craft shall have adequate flotation to hold itself and the passengers   under all conditions a float.  This positive flotation shall be in form of fixed foam ( Panels, injected or poured) .
The craft shall have on the bottom places to grab on / hold yourself to the craft for the purpose of rescue.
Cockpit:
The cockpit on an open craft shall be self draining  or equipped with a self draining system, allowing spray to run of without getting the craft ashore. It shall be under max. payload above sea level - outlets should have adequate diameter to drain the area. Safety gear should be easy accessible for all passengers.
On closed crafts should be at least one self draining outlet, for cases like broken windshield.
Safety equipment:
All crafts should be equipped with current safety and navigation equipment after US Coast Guard standard for small crafts. Navigation lights and 360 degree strobe light are built in the electrical system of the craft.
Structural parts:
All structural parts should be sealed with resin against rott. Engine mounts should be connected to the main frame of the craft - as ducts should be laminated to give driver and passenger safety in case of fan blade rupture.
Materials:
All used materials should reflect the technical standard of the day the craft is designed!
For special application we consult people with the qualifications in that field and implement their suggestions.


These are our standards and they don't qualify for the harsh environment of racing - just for the cruising environment where max. speed is not the question but save landing on an deserted place! We are not building production line crafts - only one off's since everybody has different needs ! Here is the data for ALPHA - I craft Data sheet ALPHA-I
So if you can live with that give us a call @ 956-943-5150 or mail us @  4wings@csoft.at .
Thank you for your understanding.
Michael Dolezal
