Example of Photographic Documentation of a Mill, Black & White Photos of the Machinery of Diller-Heishman's Mill, Carlisle, Pennsylvania, Photo #8.

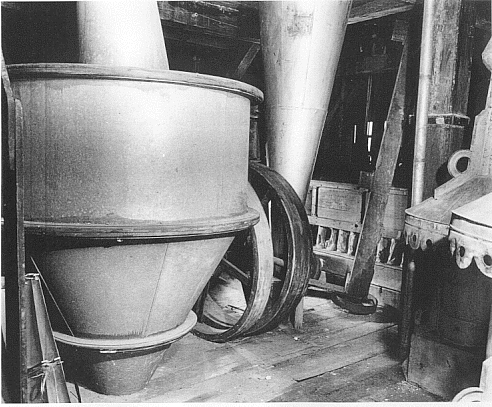

Photo Number 8, All metal dust collector. Cyclone.
Wolf Company, Chambersburg, Pennsylvania, No. 6,
and Cyclone dust collector.
Wolf Company, Chambersburg, Pennsylvania. Size 363.



Photo Information and Machinery Documentation

Photo Number: #8.
Floor Number-Item Numbers: 3/10 and 3/11. (See: Floor Level 1. Third Floor Plan)
Items in Photo: All metal dust collector, and Cyclone dust collector.
Provenance - Manufacturer (if known): Wolf Company, Chambersburg, Pennsylvania.
Dimensions, Yield, Capacity, Output, and Additional Information: No. 6, and Size 363.
Catalog Documentation: "Flour Mill Machinery (Corn, Feed, Cereal, and Alfalfa), Flour, Corn, Cereal, and Feed Mill Machinery, Complete Accessories, The Wolf Company (Established 1879, "Complete Modern Mill Builders and Engineers"), Chambersburg, Pennsylvania. U. S. A., 1922.

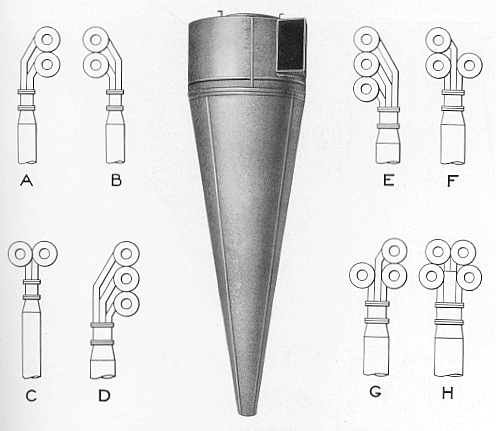

The Wolf All Metal Dust Collector

These collectors are built on the long cone principle and require no power to operate. No expense for upkeep and the All Metal construction reduces the fire risk to the minimum.

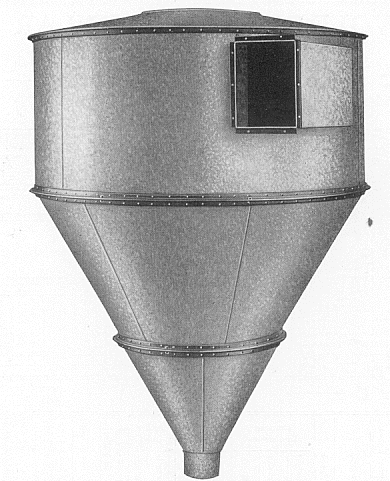

The Wolf Cyclone Dust Collector

Especially recommended for collecting dust from receiving separators and grain cleaners. Adapted for indoor or outdoor use.

Unless otherwise specified, Cyclone Collectors are furnished for indoor use with wood rings and right hand outlet. For outdoor use, the Collector is built with angle iron rings and sloping top.
