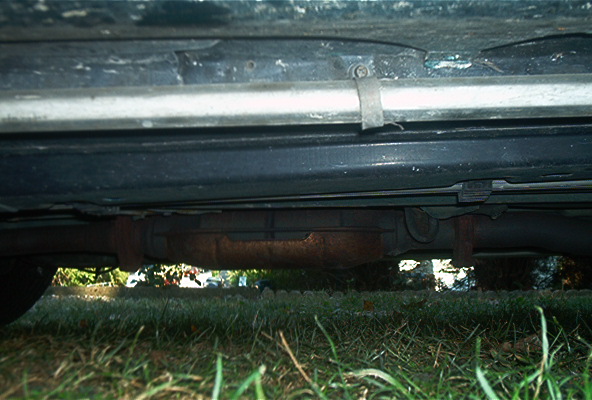

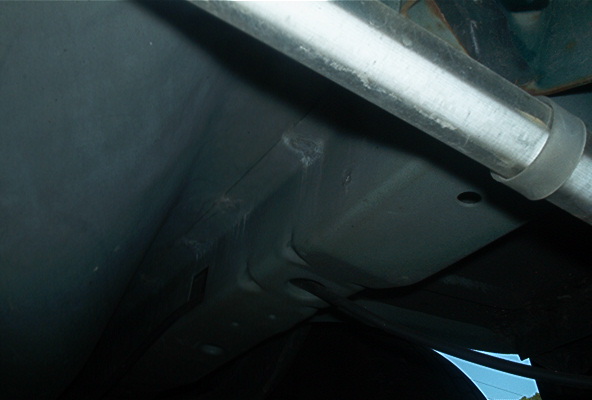

These are the pics of the side install against the pinch weld. You can use the inside of the weld if u want to hide the tube better but then it won't shine out to the sides as much....if u put the tubes inside the pinch weld the tubes should not be able to be seen at all.

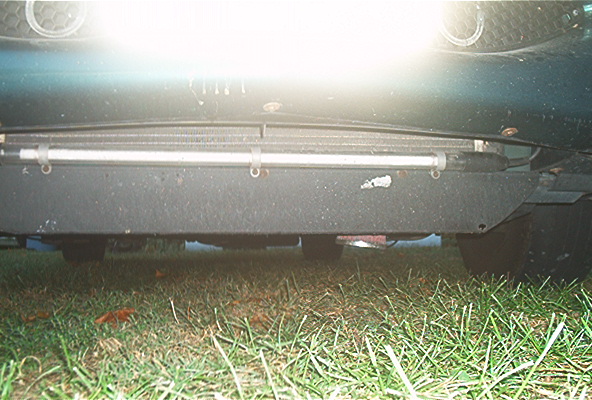

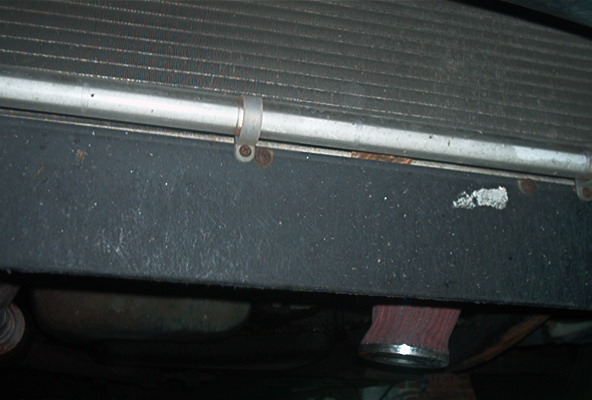

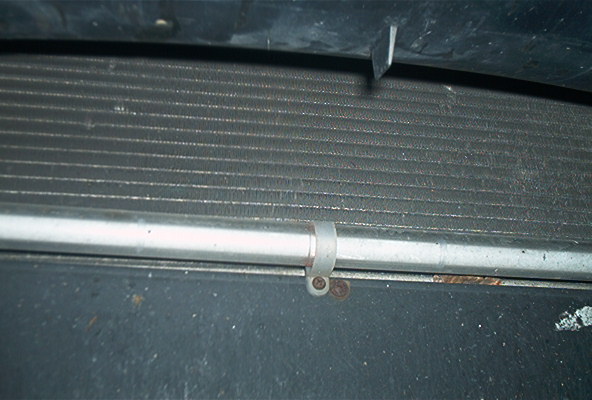

These are the pics of the front install....i used the lil flap protector thing for the radiator...but DON'T use the radiator to screw into....if u don't have this piece on ur car its ok...u just have to find sometime else to secure to.

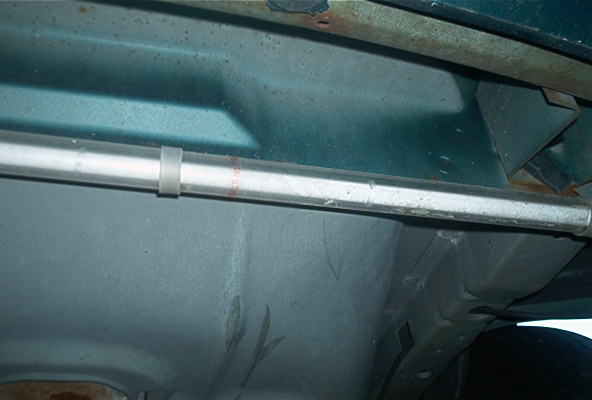

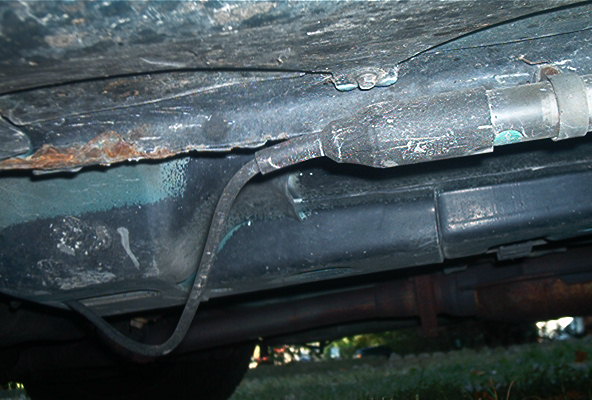

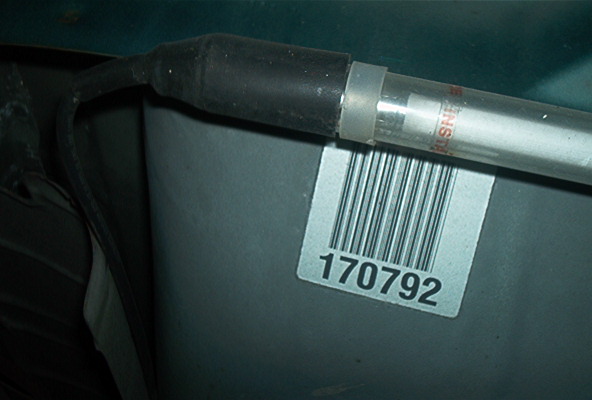

These are the pics for the rear of the car don't drill into the gas tank my car had a pinch weld infront of the gas tank that i screwed into....if u want in the back u can drill small holes and use high quality zip ties to hold the tubes in place zip ties are sometimes a better solution on underglow kits then the straps streetglow provides u with.

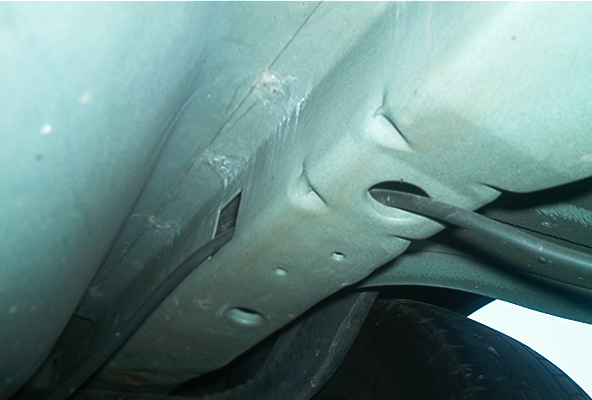

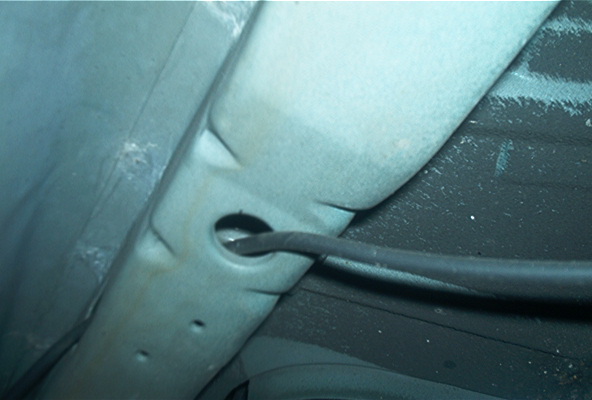

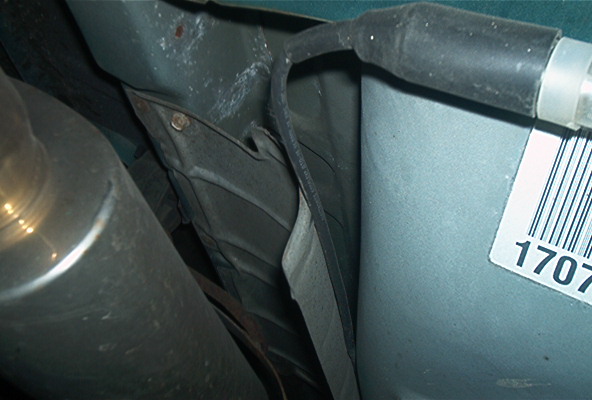

These pics show how to run the wires or at least suggest how to run the wire for the rear tube....these wires shouldn't touch the exhuast line and should not be ran around any moving parts...the front suspension is fairly safe but u have to be careful...this is how i ran the back.

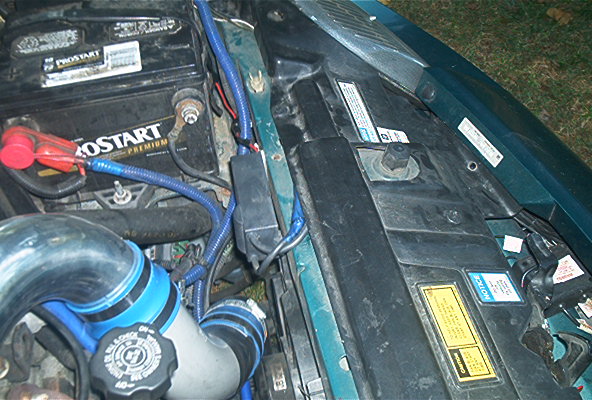

This is how the engine bay should look placement of the transformer may vary but generally you want to scrape the paint in a small area about 1" by 2" this is the area where the metal bar on the transformer will be mounted so make sure your two leads from the "glow sticks" reach the transformer and that the wires a accessible to hook up the switch.

i hope this helps good luck any questions call or email Juice11@gmail.com or AIM iisdajuice
