HH 60 J Jayhawk

Gallery Page 2

More photos of the exterior of the Jayhawk.

This will focus more on the wheels and the pylon.

Jayhawks have had thier ability to fold for shipboard storage removed.

they have head similar to Seahawks, but without all the folding hydraulics installed.

Similarly, their ability to fold thier tail has bee removed by literally bolting the tail closed and

installing a solid driveshaft like the US Army uses.

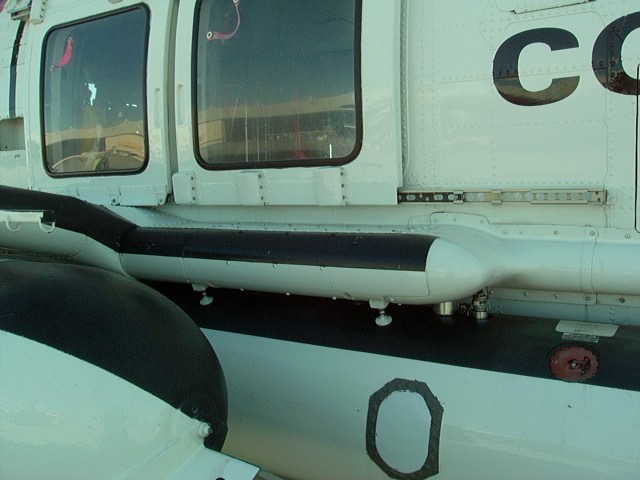

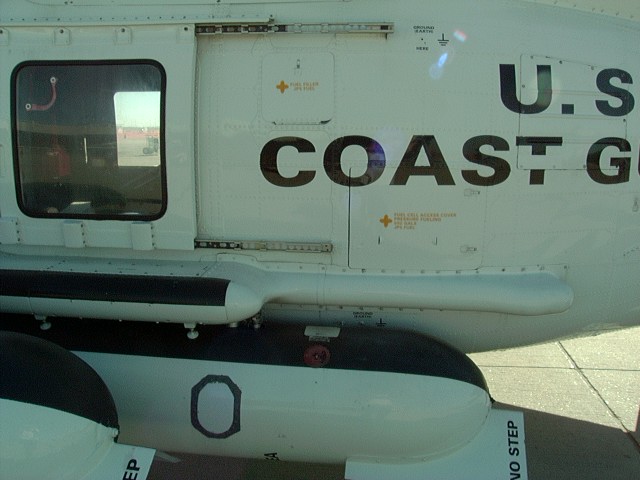

Left side of aircraft, looking forward.

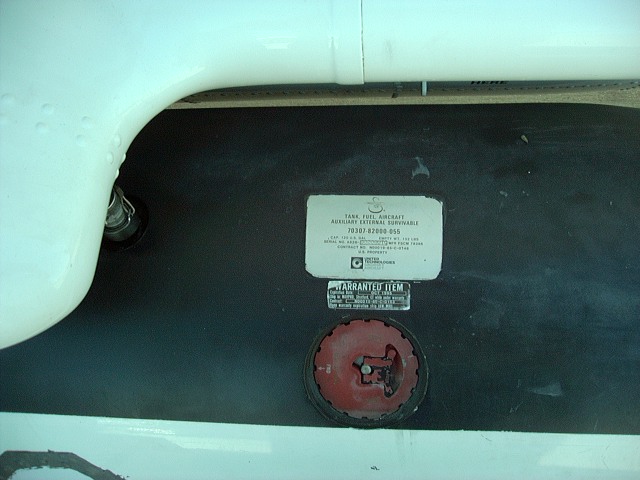

topside detail of the inboard fuel cell

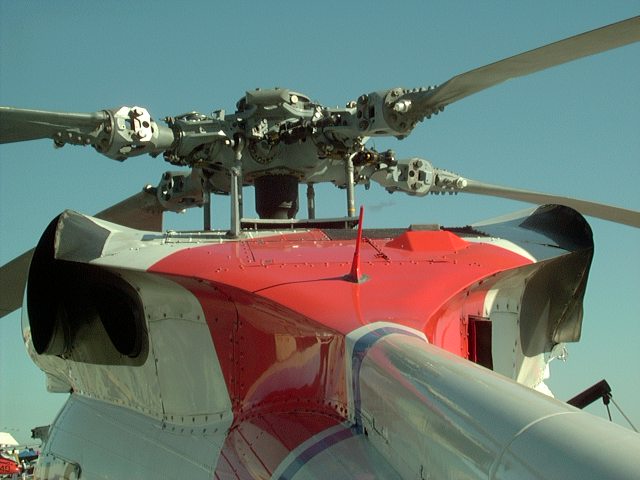

Notice the hydraulic fold gear has been removed, while some components remain installed.

Hub, bifolars, spindles, PC links and grips are gloss medium grey. Lead Lag dampers are black.

Blades are medium blue grey with white Blade health visual indicators

Uh60 style exhaust eductors with the air starter exhausts on the right.

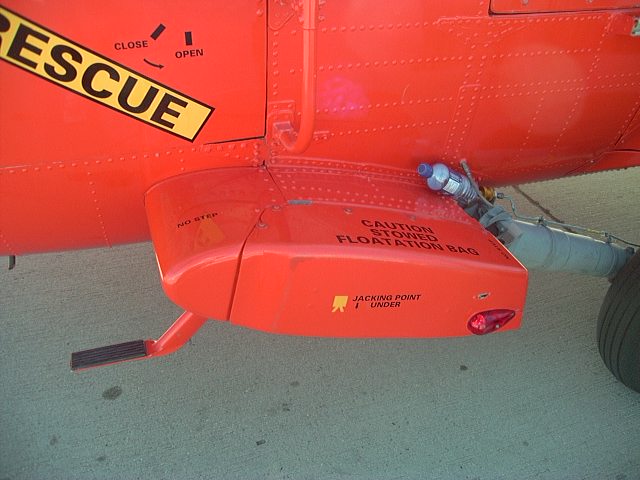

step detail with float bag inside. No wirecutters installed.

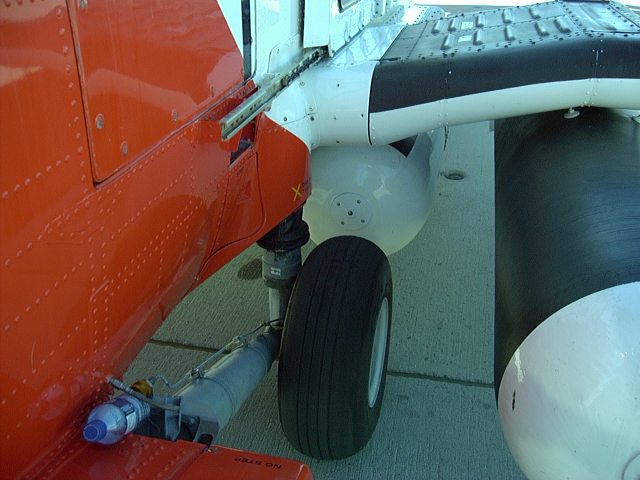

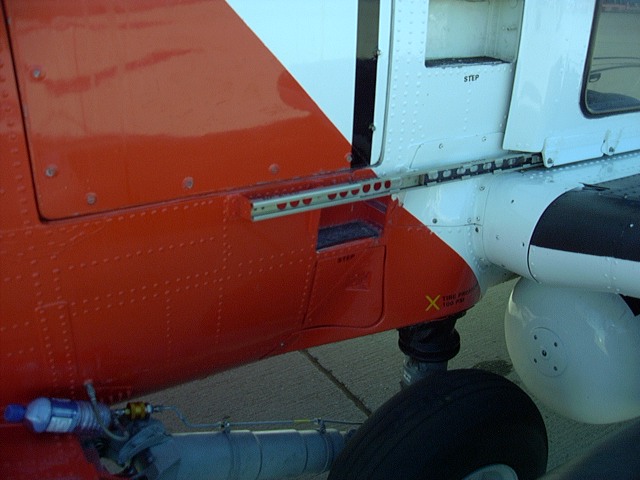

medium grey wheel components with brake line and quick disconnect.

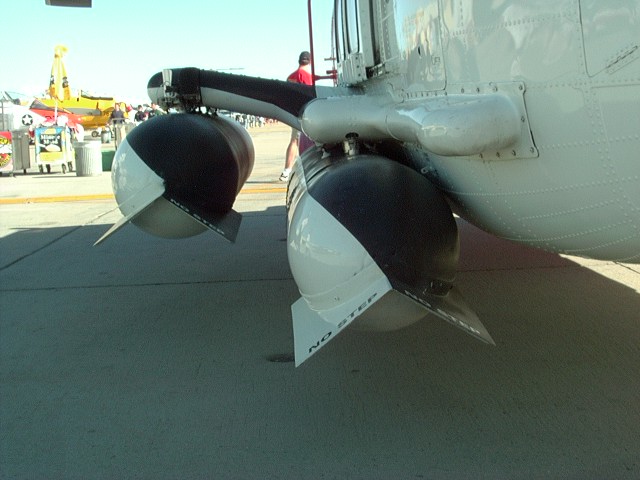

Note the sway braces on the fuel tanks. No nonskid on tanks ...non walkway surfaces.

Click here to go to Page 3 of Jayhawk Detail Photos
