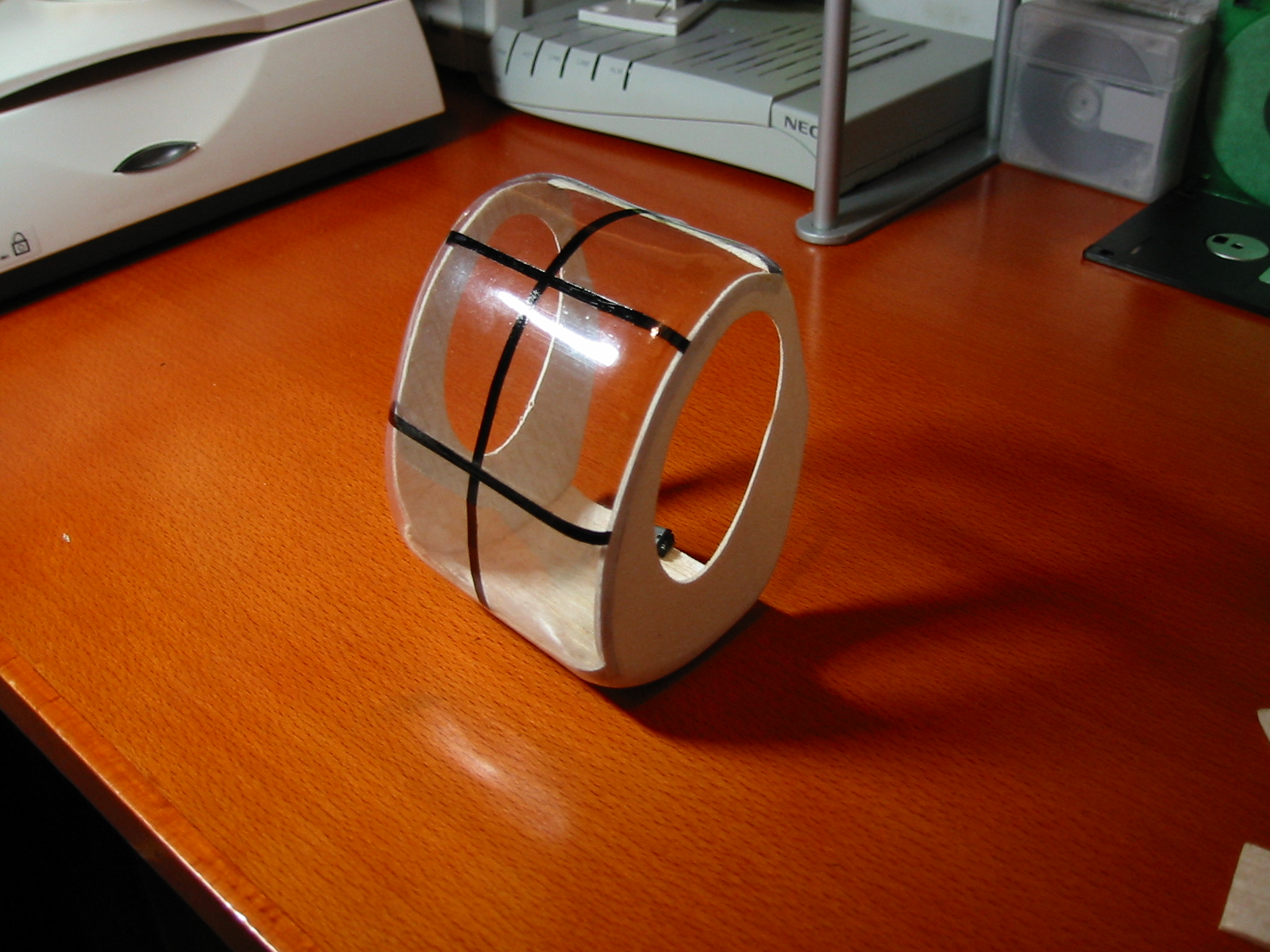

This is a canopy that I made for the helicopter. It is made from balsa and heat shrink tube.

¡@

¡@

¡@

This is the original design of my helicopter. As you can see, the landing gear is made from wooden robs ( it is now made from carbon robs ). On the other hand, the tail boom is originally made from plastic tube. It is too weak and so, a carbon tube had been used instead.  Can you guess where I got the carbon tube?  It is from an old fishing-rob^^

¡@

¡@

This photo was taken when the main rotor and blades were being tested.

¡@

¡@

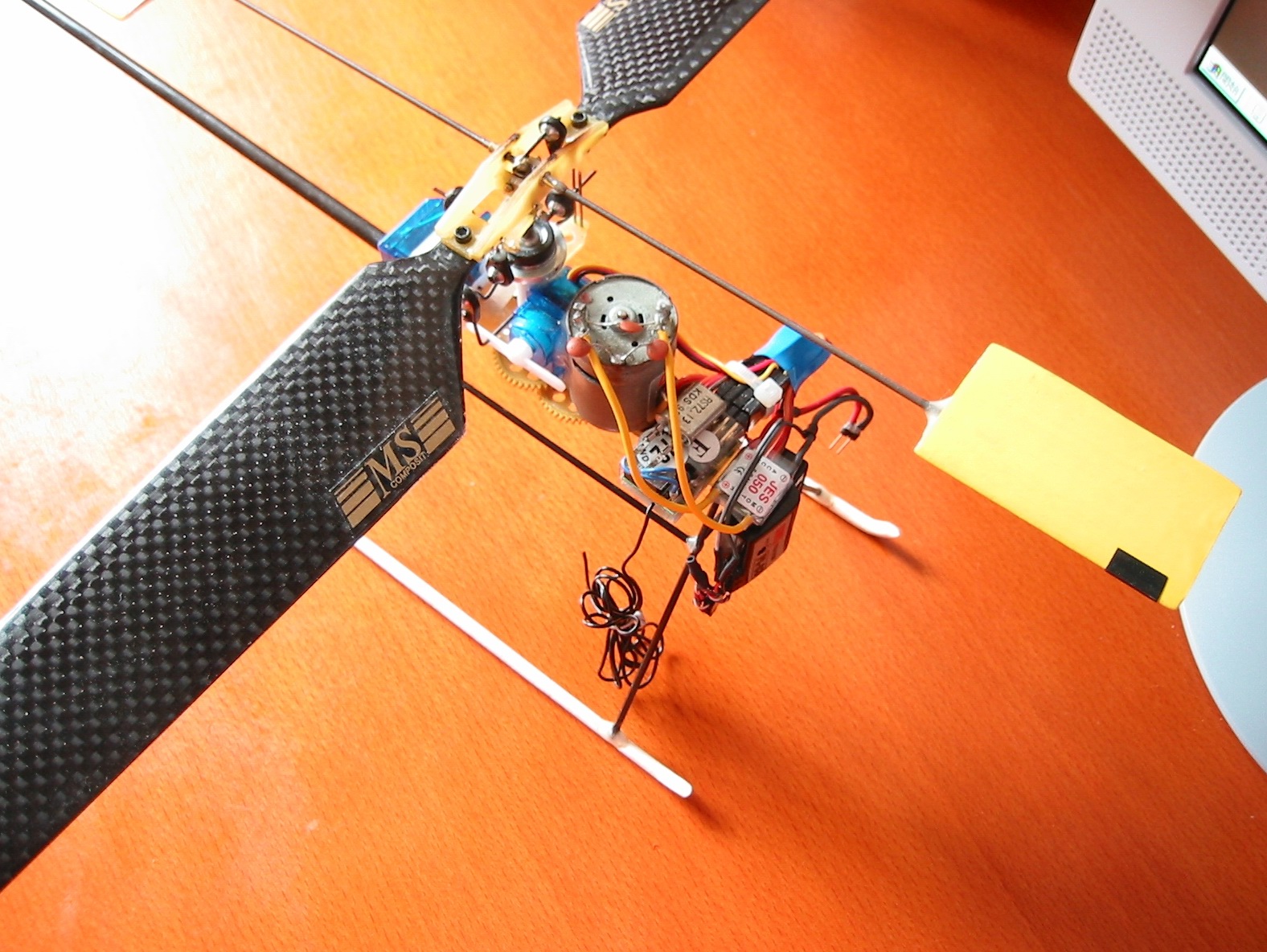

A top view of the helicopter. The blades are from MS Composite. I have given my try in making wooden blades. However, their performance really can't compare with the carbon one.

¡@

¡@

After connecting the battery, It's ready to fly in the park.

¡@

¡@

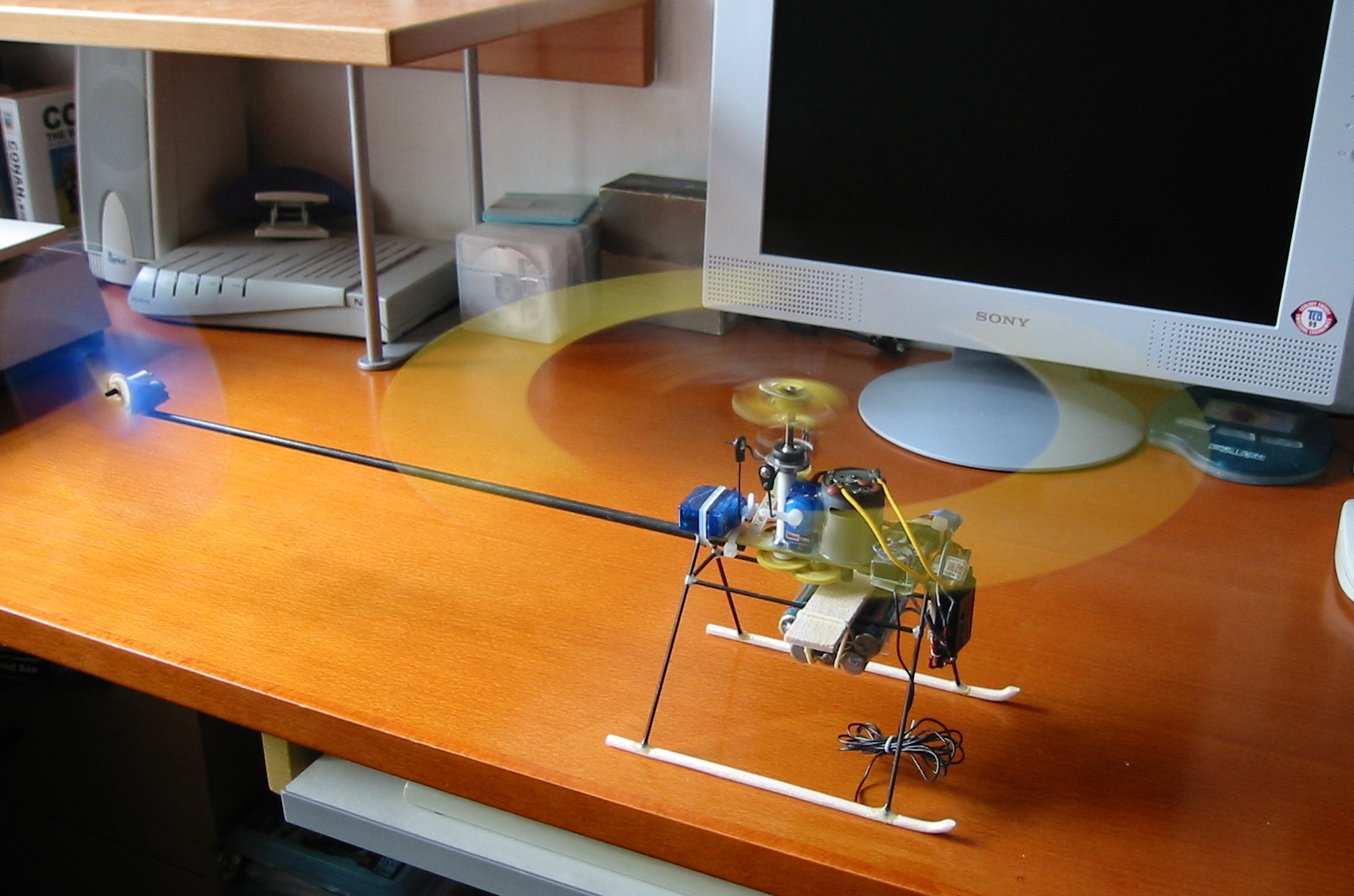

Flying on the desk? No!!  Just to take a photo.

¡@

¡@

The old speed 300 motor had just been replaced with a new one, looks good!

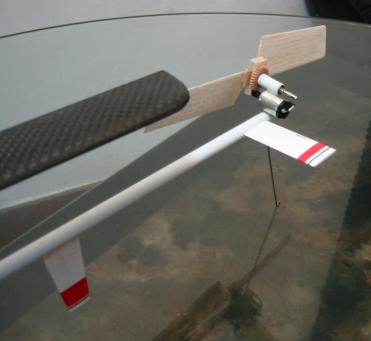

It is a close-up of the original tail boom. 2 fins were also placed at the boom.

¡@

¡@

¡@

A shot at the bottom of the helicopter. Here you can see the gearing that are used in my helicopter.

¡@

¡@

A private parking site of my helicopter in my small room.

¡@

¡@

Ha Ha...It's flying.  Want to see it fly? click here!

¡@

¡@

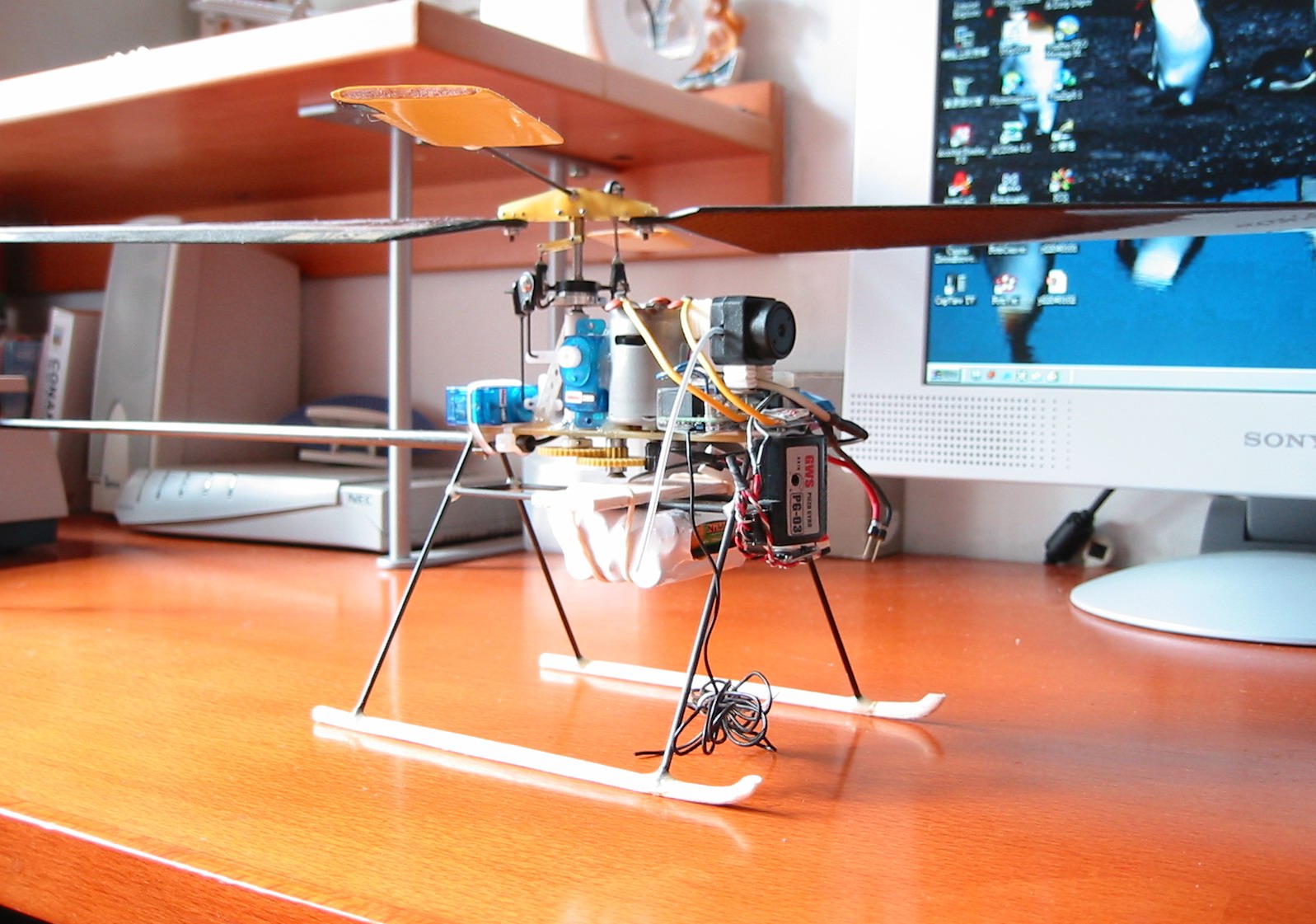

My helicopter got a wireless micro cam.

¡@

¡@

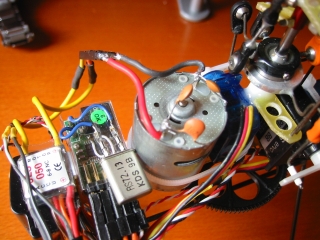

What this small motor is? It comes from a Sony CD-ROM. Click here for more information.

¡@
