GreatPlanes Giant PT-19 ARF
WING AREA: |
1027 |
|
FLYING WEIGHT: |
172oz |
WING LOADING: |
24.1 |
MOTOR: Hacker |
B5010L G6.7-1 |
PROP:APC-E |
16x10 |
CELLS: |
18 RC2400 |
AMPS: |
40 |
WATTS PER LB. |
70 |
The GreatPlanes Giant PT-19 ARF built stock per the plans with
a Hacker B50 10L Geared 6.7-1 motor, Schultze 80fo ESC, 5 Hitec HS-225BB servos,
Hitec super slim receiver, 16x10 APC-E prop, and 18x2400 batteries. This plane
flies great!
The quality of this ARF was very good no sanding was require everything
fit together strait out of the box. |
|

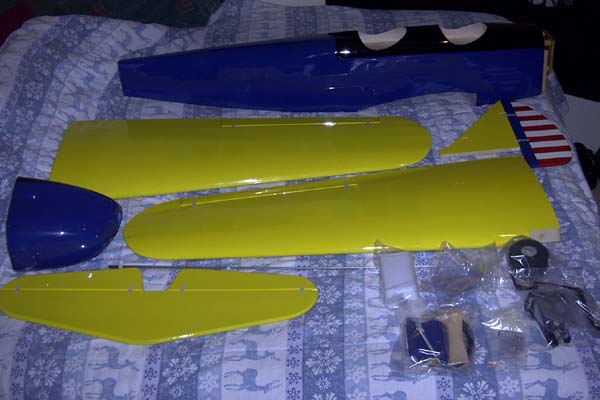

This is everything strait out of the box the covering was
tight and no damage to any parts. |
|

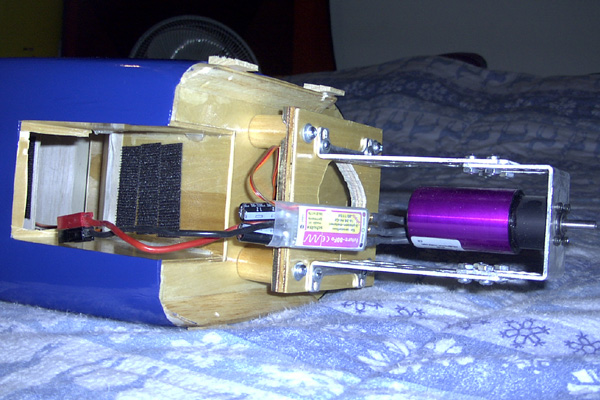

This is a picture with the cowl removed. I cut a hole
through the firewall for cooling air and opened up the gas tank platform
for a battery shoot. |
|

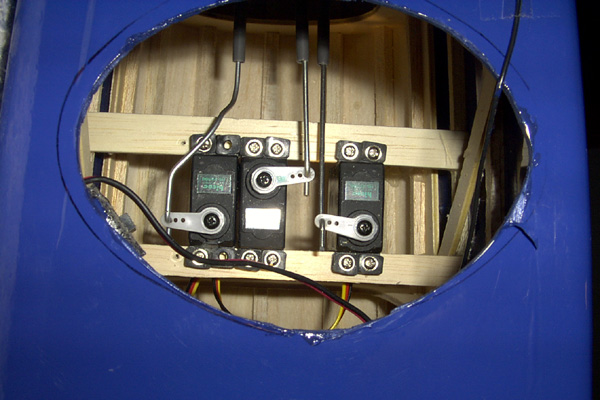

I cut a large hole in the bottom of the fuse to allow air to
exit and also allow me to install the servos. |
|

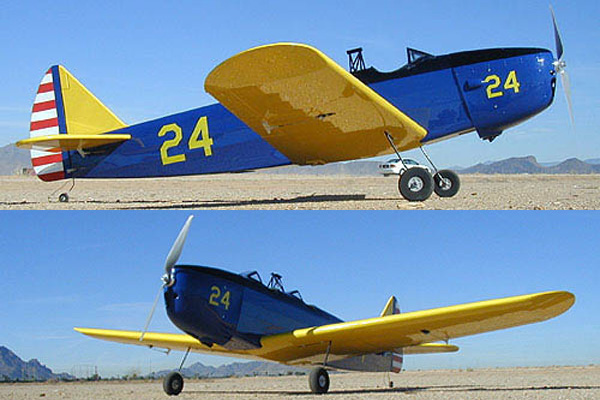

This plane comes with all the stickers you need to finish
the trim now if I can find a suitable pilot. |
|
In this picture you can see just how big this plane really
is. I am still amazed I can squeeze it in my firebird. |
|
5mb Video of this
PT-19
