| WING AREA: | 630 SQ. IN. |  |
| FLYING WEIGHT: | 108oz | |
| WING LOADING: | 24.7oz per SQ. FT. | |
| MOTOR: Aveox | 1412/2Y w 3.7/1 | |
| PROP: apc | 15x10 | |
| CELLS: | 18xRC2000 | |
| AMPS: | 40 | |
| WATTS PER LB. | 105 |

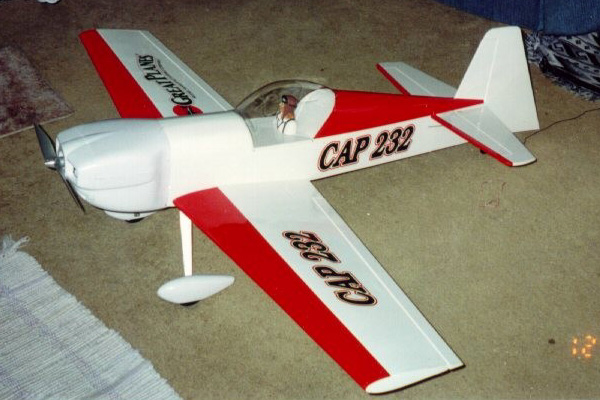

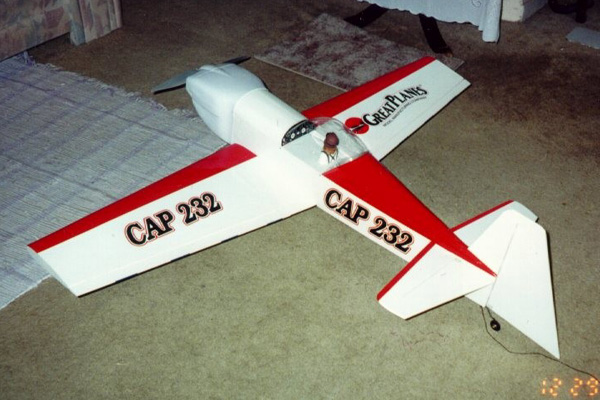

The Great Planes CAP232 equipped with 2 Hitec 225BB and 1 Hitec 85BB servos, Hitec 555 Receiver, 550 mh receiver battery, Aveox F27 motor, Aveox H260 ESC, and 18 RC2000 batteries. All up weight came in at 6 3/4lbs.
|

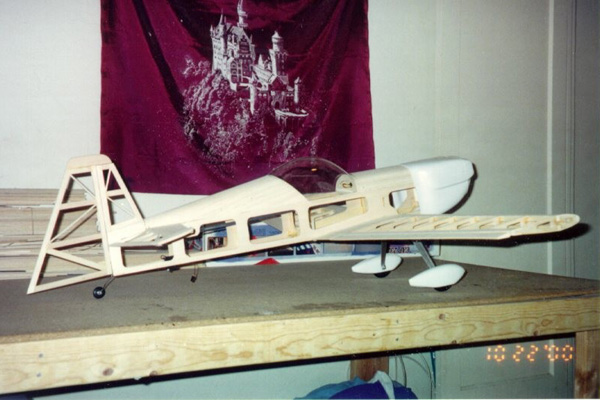

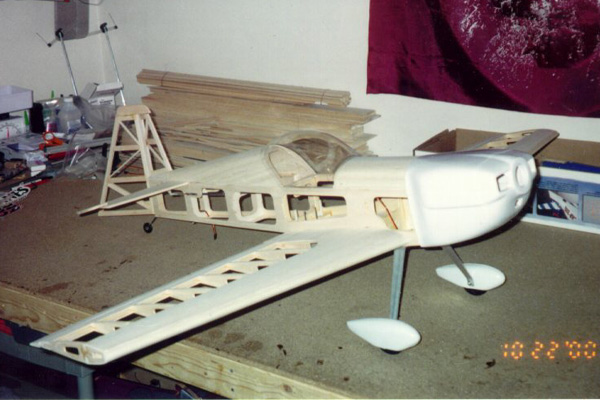

Built per the planes but with most of the ply parts replaced with balsa. |
 |
|
By replacing all ply but 2 formers, fuse doublers and firewall I was able to save over 8oz of wood weight. |
 |
|
With over 100 watts per Pound and a 15 inch prop this plane flies very well for about 5 minutes of hard aerobatics. |
 |
