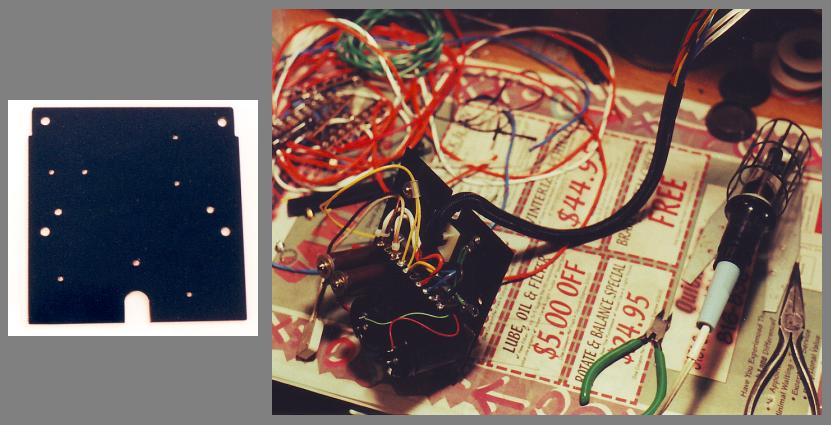

LEFT PICTURE Plate fabricated to mount parts for exciter lamp power supply and lamp wiring termination. Plate mounts in bottom of lamp housing. |
RIGHT PICTURE Fabricated plate with parts mounted for exciter lamp power supply. Wiring harness wired and ready for switch box termination. |
Lamp house assembly modified for type ELH 300 watt/120v lamp

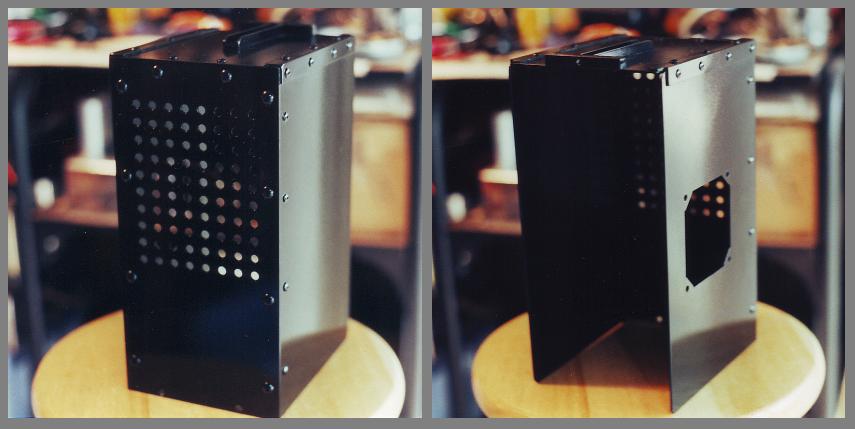

New lamp house cover.
Big hole on side is for new box fan that replaces the original belt driven fan.
Lamp house with fabricated plate containing exciter lamp supply mounted.
( White connector on yellow wires connects to cooling fan mounted on lamp house cover. )
