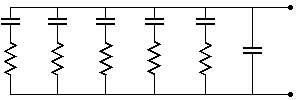

This equivalent circuit for dielectric absorption in a typical capacitor includes a number of resistors and capacitors. ('Circuits, Systems and Standards' by Bob Pease, reprinted in Electronics World Oct.1992 p832-835). The series resistors typically range from 200k to 1000M in a 1uF mylar capacitor, and the parallel capacitors from 0.0006uF to 0.006uF. At any single frequency this is equivalent to a single capacitor and series resistor, but this equivalent series resistance will be different at different frequencies. Different types of capacitor will have different equivalent circuits, but the only effects of this in coupling capacitor applications are small amplitude and phase variations.

The phase differences between capacitors may be thought to be a problem, and in some applications careful selection is needed, but in the case of a coupling capacitor the low frequency phase shift from even an ideal capacitor is in principle undesirable. A typical non-ideal capacitor will merely give a slightly different undesirable phase shift. Both are wrong, but if we compare them this can lead to a surprising conclusion.

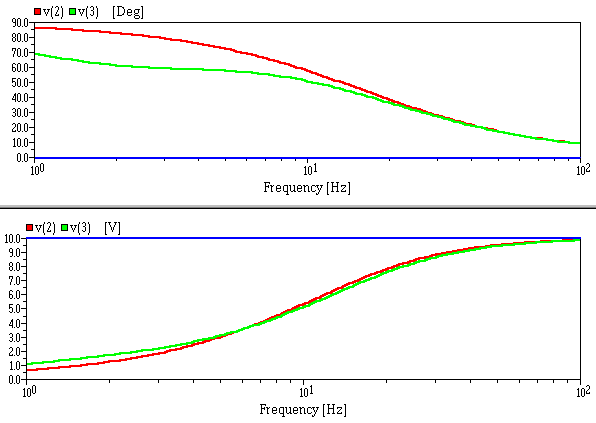

Keeping the capacitor fixed at 1uF and adding another 1uF in series with 100k to simulate a rather extreme example of the DA effect we actually find that the amplitude errors are little different, but there is a clear reduction in phase error at low frequencies when the DA is added (shown below in green). It would be misleading to suggest that DA is therefore a good thing. Increasing the coupling capacitor to 10uF will give a far greater reduction of amplitude and phase errors. (Actually, it is debatable whether the 1uF with added DA described here should be regarded as a 1uF or a 2uF capacitor, it depends on how we choose to define or measure capacitance.) Just comparing the two phase graphs the DA effect reduces the phase advance, easily interpreted as a relative phase delay if we mistakenly take the ideal capacitor to be our reference standard, which could lead to the conclusion that DA adds time delay when in this application it actually adds less phase advance.

A more appropriate reference standard would be the direct coupled response, shown in blue, with no amplitude or phase errors. Direct coupling has its own problems, and generally the effects of phase shifts from input filters must be balanced against the increased noise, switch-on thumps from signal sources, danger of interference, offset voltages etc. My own choice for the MJR7 amplifier is to use input filters with -1dB around 12Hz and 30kHz. Without the rest of the audio chain, particularly the speakers, having flat response down to dc there is little to be gained by using direct coupled amplifiers, and extending the -3dB frequency to something like a tenth that of the speakers is enough to keep the increase in phase errors relatively insignificant.

The high frequency response needs far less extension beyond the nominal 20kHz upper limit, most of the phase error from a typical low-pass filter is equivalent to a constant time delay, which will be inaudible and can be ignored. An article by Dr Leach, The Differential Time-Delay Distortion and Phase-Shift Distortion as Measures of Phase Linearity, examined this and concluded that for a less than 5deg phase nonlinearity up to 20kHz a first-order low-pass filter needs to be -3dB at 35kHz or more, while a second-order Bessel filter can be -3dB as low as 25kHz for the same error, though here the gain error may be considered more important. He suggested that higher order Bessel filters add even less error. My own MJR7 has a second order low-pass response, and the phase shift is almost perfectly linear from 1kHz to 20kHz, equivalent to a constant time delay of 3.3usec.

I have never personally heard any difference between different capacitors, which may be either a hearing deficiency on my part, or just a lack of imagination. There are well documented listening tests with relevance to 'capacitor sound'. One example is the famous Quad amplifier test in which the conventional class-B type 303 using an electrolytic output capacitor was compared with the direct coupled feedforward 'current dumping' 405 and the Quad II transformer coupled valve (tube) amplifier. ('Valves versus transistors' by James Moir, Wireless World July 1978 p.55-58.) Using top quality master-tape recordings and two different experienced listening panels no statistically significant differences could be found, either for the group averages or for any individual member. Care had been taken to accurately match gains and avoid clipping to eliminate these common causes of audible difference. The test was originally intended as a challenge to those audio reviewers who claimed to hear clear differences between what were known to be good amplifiers. Peter Walker said that Quad would stake their reputation on the outcome, predicting that no differences could be heard, even though these are radically different designs. In earlier tests ('Dynamic testing of audio amplifiers', Hi-Fi News, Nov.1970, p1655), the distortion of the 303 including output capacitor was extracted while using a music test signal, and the distortion alone without the masking effect of the music was found to be inaudible, and had to be increased many times before becoming audible. If output coupling electrolytic capacitor distortion can have so little effect it seems unlikely that we need to worry too much about coupling capacitors in other parts of an amplifier which handle much smaller signal currents, though it may do no harm to choose types reputed to have lower distortion than others, apart from possibly higher cost and also increased interference pickup from physically larger sizes.

In my MJR6 and MJR7 amplifier designs the speaker coupling capacitor was included in the overall feedback loop, primarily to improve the low frequency damping factor, but this will also minimise distortion, and the low measured distortion figures included the effect of this and all the other capacitors. Only the input filtering capacitors are expected to add significant distortion if badly chosen, these being outside the feedback loop. Looking at published distortion measurements by Bateman and others there seems general agreement that at 470pF good types are polypropylene, polystyrene and NPO/COG ceramic. The 2.2uF input coupling capacitor is more of a problem, polypropylene at this value are both large and expensive. My tests revealed that a large physical size for this component can lead to a large increase in interference pickup, particularly if the signal source impedance is high.

My measured distortion was with a polyester input capacitor. I used a very small 2.2uF 100V polyester, Epcos type B32560 from Farnell. Tests published by C.Bateman included Epcos polyester types, and found third harmonic at -90db at 1kHz at 4V capacitor voltage. The distortion is relative to the voltage across the capacitor, which in my amplifier will be more than 400 times lower at 1kHz, and third harmonic can be expected to be proportional to the square of the signal level, so capacitor distortion relative to total input voltage at 1kHz could be something like -234dB. At 20Hz the figure will be higher, about -142dB. Worrying about this sort of distortion level in capacitors seems pointless when in most audio amplifiers far higher distortion is produced by the nonlinear semiconductor junction capacitances.

---

---

I did a simple simulation to see how the DA effect changes pulse response.

The pulse is a single 1V positive pulse starting from zero and returning to zero after 5 msec. This pulse is applied to a capacitor which drives a 1k load. The green trace is the output across the resistor for an ideal 8uF capacitor and the red trace is for the same capacitor with a series 1uF plus 10k connected in parallel to simulate a DA effect, similar to the circuit used earlier to investigate phase shifts. For clarity the plots start 1msec before the start of the input pulse.

It can be seen that the two results are very similar, both have significant negative output voltage for some time after the input pulse has ended at 6msec. The capacitor plus DA has slightly less of this continuing output and so if we wanted to minimise this 'error' we again find that DA could actually be a benefit. Again however a far greater improvement can be achieved just by increasing the capacitor value.

The pulse test can be made more sensitive by subtracting the different outputs with and without the DA effect added, and the result is shown next.

The difference is more obvious now, but do real capacitors give the same sort of result? It appears that they do. An article in 'The Audio amateur', A Real-Time Signal Test for Capacitor Quality (1985) shows the difference signal extracted for several pairs of capacitors, and apart from a short spike at the pulse edge the results have a more or less similar shape to my simulation result.
Unfortunately, just looking at this result we can no longer see which of the two outputs is more accurate, and we could easily assume the capacitor with DA is adding this difference signal compared to the output of the 'ideal' capacitor, when it is the capacitor with DA which gives a slightly more accurate output.

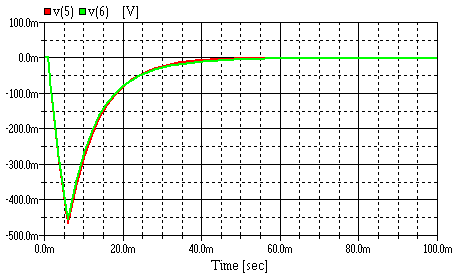

So is there a better approach? If we want to get some idea of how the actual sounds differ it may be more instructive to look at the individual error voltages, which are just the difference between the input voltage and the output voltage. Ideally the input and output will be identical, so the differences would be zero, but the two results are as shown next:

The capacitor with DA has the error voltage shown in green, and this has a lower magnitude peak value, but becomes slightly greater at around 40msec. It is difficult to imagine why one of these error voltages would cause the 'smeared transients' and other audible effects supposedly caused by DA but the other would not.

I could find no examples of testing real capacitors by extracting the difference between input and output, so I tried a few tests myself, Capacitor Distortion Part 2, using a 'musical' test signal. The results were not particularly revealing, but given the simulation results on this page that is not too surprising.

Real capacitors are more complex, but extracting and amplifying the small difference between two capacitors seems unhelpful as a method of choosing audio frequency coupling capacitors, where linear effects such as DA generally do no harm. Using a higher value coupling capacitor can be expected to reduce errors, while choosing one with low DA is not necessarily of any benefit, and may even increase errors slightly. There may be real causes of audible differences, one I have observed is the increased pickup of interference by a capacitor with large physical size, which is why I recommend small polyester input capacitors for my amplifier designs rather than big polypropylene types.

There is some evidence that capacitor types with high dielectric absorption also tend to have relatively high distortion, possibly because both effects can be worse with materials having polar molecules. The distortion is usually nothing much worse than low levels of third harmonic, and is only at a serious level in a few types, such as high-k ceramics, which should certainly be avoided in some applications. The distortion levels are greatest when there is significant signal voltage across the capacitor, so is less of a problem for signal coupling where the idea is to avoid signal loss across the capacitor by choosing a sufficiently high value.

---
